TPA2036D1YZFR TPA2036 Class-D Audio Power Amp

TPA2036D1YZFR TPA2036 Class-D Audio Power Amp

PDF Datasheet：

Specification：

Manufacturer: Texas Instruments

Product Category: Audio Amplifiers

RoHS:  Details

Audio Load Resistance: 8 Ohms

Product: Audio Amplifiers

Type: 1-Channel Mono

Class: Class-D

Output Power: 2.5 W

THD plus Noise: 0.18 %

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.5 V

Maximum Operating Temperature: + 85 C

Mounting Style: SMD/SMT

Package / Case: DSBGA-9

Packaging: Reel

Brand: Texas Instruments

CMRR - Common Mode Rejection Ratio: 49 dB

Development Kit: TPA2036D1YZFEVM

Input Type: Differential

Minimum Operating Temperature: - 40 C

Operating Supply Voltage: 3 V, 5 V

Output Type: 1-Channel Mono

Pd - Power Dissipation: 975 mW

PSRR - Power Supply Rejection Ratio: 75 dB

Series: TPA2036D1

Factory Pack Quantity: 3000

Supply Type: Single

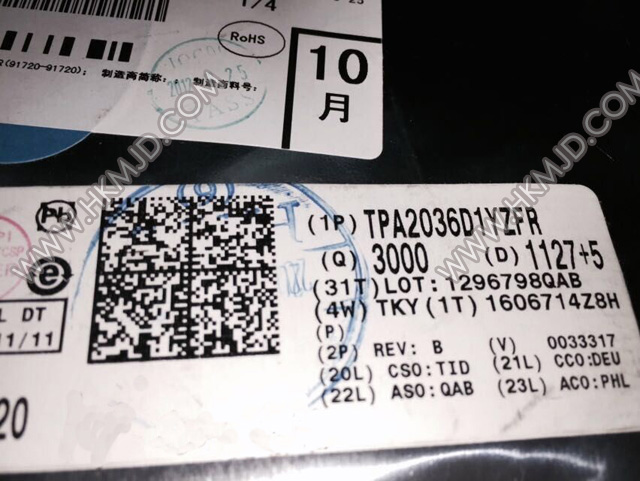

Picture：
