STS8C5H30L MOSFET N/P-Ch 30V 8/5 Amp

STS8C5H30L MOSFET N/P-Ch 30V 8/5 Amp

PDF Datasheet：

Specification：

Manufacturer: STMicroelectronics

Product Category: MOSFET

RoHS:  Details

Brand: STMicroelectronics

Id - Continuous Drain Current: 8 A

Vds - Drain-Source Breakdown Voltage: 30 V

Rds On - Drain-Source Resistance: 22 mOhms

Transistor Polarity: N-Channel, P-Channel

Vgs - Gate-Source Breakdown Voltage: 16 V

Vgs th - Gate-Source Threshold Voltage: 2.5 V

Qg - Gate Charge: 7 nC

Maximum Operating Temperature: + 150 C

Pd - Power Dissipation: 2 W

Mounting Style: SMD/SMT

Package / Case: SO-8

Packaging: Reel

Channel Mode: Enhancement

Configuration: Dual Dual Drain

Fall Time: 8 ns, 35 ns

Forward Transconductance - Min: 8.5 S, 10 S

Minimum Operating Temperature: - 55 C

Rise Time: 14.5 ns, 35 ns

Series: STS8C5H30L

Factory Pack Quantity: 2500

Typical Turn-Off Delay Time: 23 ns, 125 ns

Unit Weight: 0.002998 oz

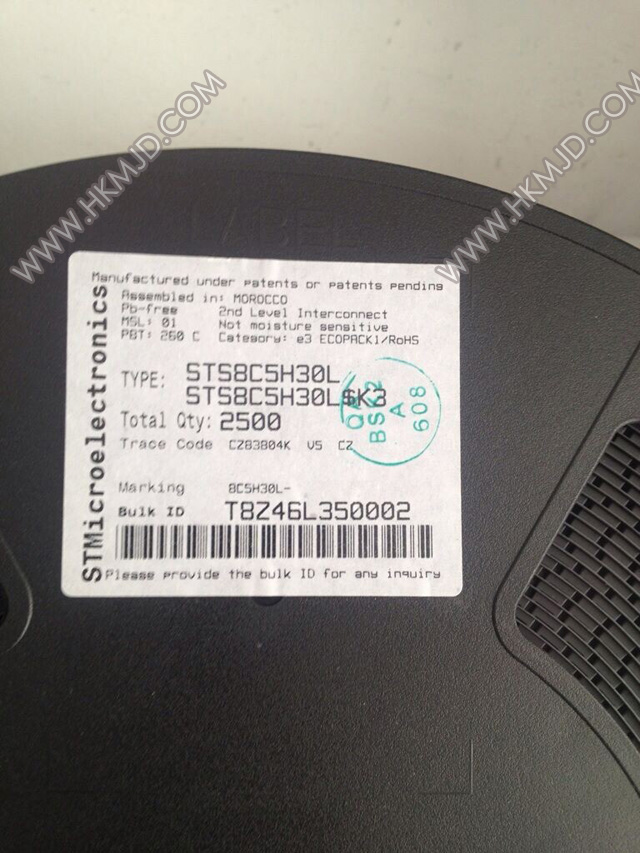

Picture：
