LTC3616EUDD LTC3616 13.5 A SWITCHING REGULATOR
| Part number | Brand | Date | QTY | Package | Remarks |
| LTC3616EUDD | LT | 14+ROHS | 7500 | QFN |
Original have in stock |
PDF datasheet：
Specification：
| Mfr Package Description | 3 X 5 MM, LEAD FREE, PLASTIC, QFN-24 |
| REACH Compliant | Yes |
| EU RoHS Compliant | Yes |
| Status | Active |
| Analog IC - Other Type | SWITCHING REGULATOR |
| Control Mode | CURRENT-MODE |
| Input Voltage-Nom | 3.3 V |
| Input Voltage-Min | 2.25 V |
| Input Voltage-Max | 5.5 V |
| JESD-30 Code | R-PQCC-N24 |
| JESD-609 Code | e3 |
| Moisture Sensitivity Level | 1 |
| Number of Functions | 1 |
| Number of Terminals | 24 |
| Operating Temperature-Min | -40 Cel |
| Operating Temperature-Max | 125 Cel |
| Output Current-Max | 13.5 A |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | HVQCCN |
| Package Equivalence Code | LCC24,.12X.2,20 |
| Package Shape | RECTANGULAR |
| Package Style | CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE |
| Peak Reflow Temperature (Cel) | 260 |
| Qualification Status | COMMERCIAL |
| Seated Height-Max | 0.8000 mm |
| Sub Category | Switching Regulator or Controllers |
| Surface Mount | YES |
| Switcher Configuration | BUCK |
| Switching Frequency-Max | 2700 kHz |
| Technology | CMOS |
| Temperature Grade | AUTOMOTIVE |
| Terminal Finish | MATTE TIN |
| Terminal Form | NO LEAD |
| Terminal Pitch | 0.5000 mm |
| Terminal Position | QUAD |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Length | 5 mm |
| Width | 3 mm |
| Additional Feature | ALSO OUTPUT VOLTAGE ADJUSTABLE DOWN TO 0.6V |

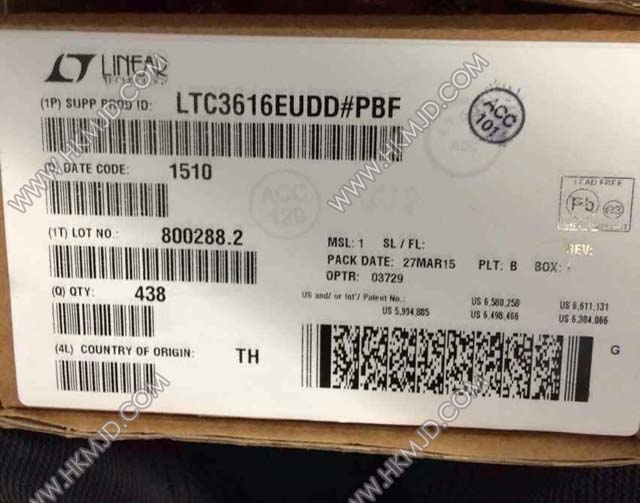

Picture：
