TLC5510INSR TLC5510 Analog to Digital Converters

TLC5510INSR TLC5510 Analog to Digital Converters

PDF Datasheet：

Specification：

Manufacturer: Texas Instruments

Product Category: Analog to Digital Converters - ADC

RoHS:  Details

Resolution: 8 bit

Sampling Rate: 20 MS/s

Number of Channels: 1 Channel

Input Type: Single-Ended

Interface Type: Parallel

Architecture: Half-Flash

Reference Type: External, Internal

Brand: Texas Instruments

Analog Supply Voltage: 4.75 V to 5.25 V

Digital Supply Voltage: 4.75 V to 5.25 V

SNR - Signal to Noise Ratio: 44 dB

Maximum Operating Temperature: + 75 C

Minimum Operating Temperature: - 20 C

Mounting Style: SMD/SMT

Package / Case: SOP-24

Development Kit: TLC5510EVM

DNL - Differential Nonlinearity: +/- 0.75 LSB

INL - Integral Nonlinearity: +/- 1 LSB

Number of Converters: 1 Converter

Packaging: Reel

Series: TLC5510

Factory Pack Quantity: 2000

Unit Weight: 0.010857 oz

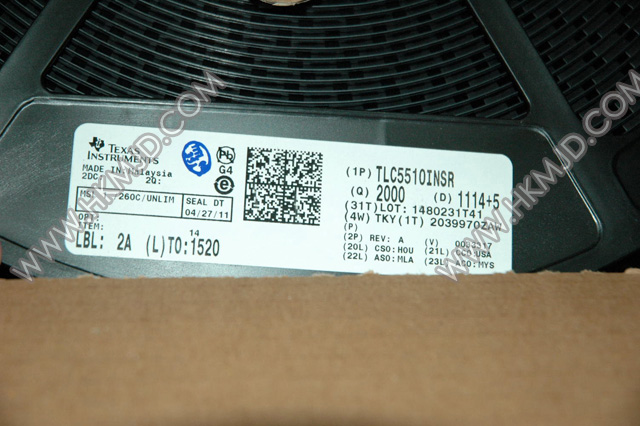

Picture：
