XCR3128XL-10TQ144I XCR3128XL Programmable Logic ICs
| Part number | Brand | Date | QTY | Package | Remarks |
| XCR3128XL-10TQ144I | XILINX | 14+ROHS | 7500 | TQFP144 |
Original have in stock |
Specification：
| Mfr Package Description | TQFP-144 |
| REACH Compliant | Yes |
| Status | Active |
| Programmable Logic Type | EE PLD |
| Clock Frequency-Max | 95 MHz |
| In-System Programmable | YES |
| JESD-30 Code | S-PQFP-G144 |
| JESD-609 Code | e0 |
| JTAG BST | YES |
| Moisture Sensitivity Level | 3 |
| Number of Dedicated Inputs | 0.0 |
| Number of I/O Lines | 108 |
| Number of Macro Cells | 128 |
| Number of Terminals | 144 |
| Operating Temperature-Min | -40 Cel |
| Operating Temperature-Max | 85 Cel |
| Organization | 0 DEDICATED INPUTS, 108 I/O |
| Output Function | MACROCELL |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | LFQFP |
| Package Equivalence Code | QFP144,.87SQ,20 |
| Package Shape | SQUARE |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH |
| Peak Reflow Temperature (Cel) | 225 |
| Power Supplies | 3/3.3 |
| Propagation Delay | 10 ns |
| Qualification Status | COMMERCIAL |
| Seated Height-Max | 1.6 mm |
| Sub Category | Programmable Logic Devices |
| Supply Voltage-Nom | 3.3 V |
| Supply Voltage-Min | 2.7 V |
| Supply Voltage-Max | 3.6 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | INDUSTRIAL |
| Terminal Finish | TIN LEAD |
| Terminal Form | GULL WING |
| Terminal Pitch | 0.5000 mm |
| Terminal Position | QUAD |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Length | 20 mm |
| Width | 20 mm |
| Additional Feature | YES |

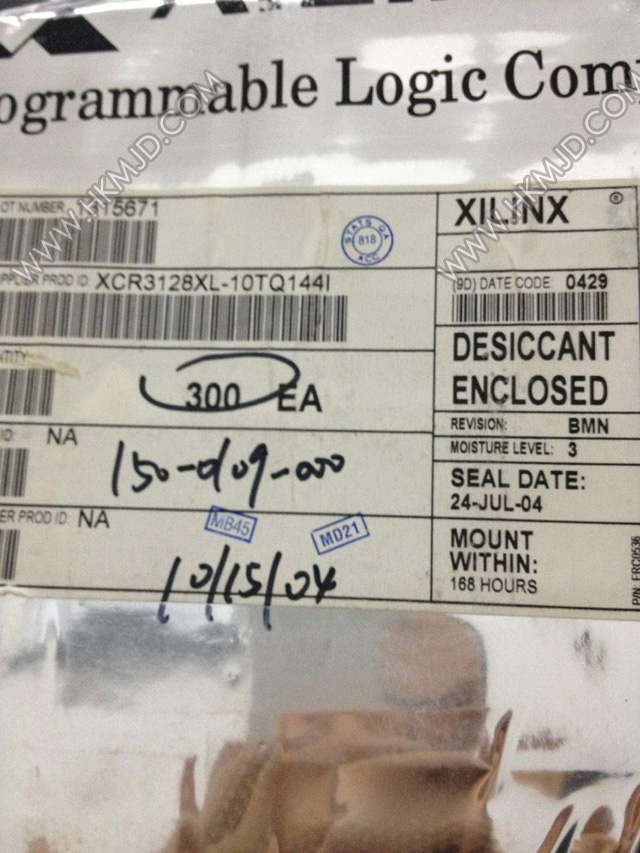

Picture：
