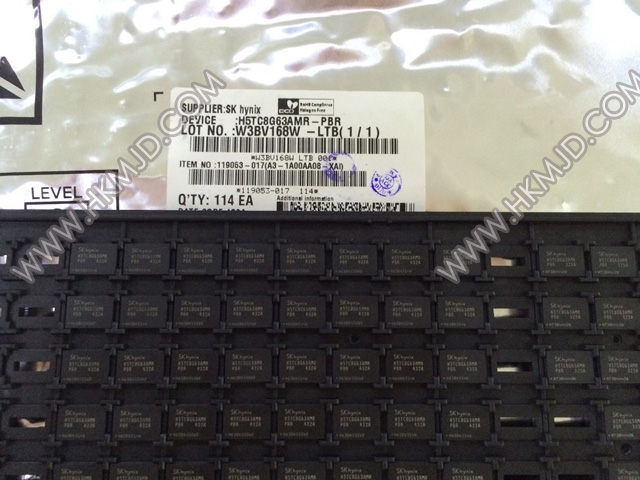

H5TC8G63AMR H5TC8G63 Memory ICs
| Part number | Brand | Date | QTY | Package | Remarks |
| H5TC8G63AMR | HYNIX | 14+ROHS | 7500 | FBGA |
Original have in stock |
PDF Datasheet：
Specification：
| Mfr Package Description | HALOGEN FREE AND ROHS COMPLIANT, FBGA-96 |
| Status | Active |
| Sub Category | DRAMs |
| Access Mode | MULTI BANK PAGE BURST |
| Access Time-Max | 0.2250 ns |
| Clock Frequency-Max (fCLK) | 800 MHz |
| Interleaved Burst Length | 4,8 |
| I/O Type | COMMON |
| JESD-30 Code | R-PBGA-B96 |
| Memory Density | 8.59E9 bit |
| Memory IC Type | DDR DRAM |
| Memory Width | 16 |
| Number of Functions | 1 |
| Number of Ports | 1 |
| Number of Terminals | 96 |
| Number of Words | 5.37E8 words |
| Number of Words Code | 512M |
| Operating Mode | SYNCHRONOUS |
| Operating Temperature-Min | 0.0 Cel |
| Operating Temperature-Max | 85 Cel |
| Organization | 512MX16 |
| Output Characteristics | 3-STATE |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | TFBGA |
| Package Equivalence Code | BGA96,9X16,32 |
| Package Shape | RECTANGULAR |
| Package Style | GRID ARRAY, THIN PROFILE, FINE PITCH |
| Power Supplies (V) | 1.35 |
| Qualification Status | COMMERCIAL |
| Refresh Cycles | 8192 |
| Seated Height-Max | 1.2 mm |
| Sequential Burst Length | 4,8 |
| Standby Current-Max | 0.0240 Amp |
| Supply Current-Max | 0.2220 Amp |
| Supply Voltage-Nom (Vsup) | 1.35 V |
| Supply Voltage-Min (Vsup) | 1.28 V |
| Supply Voltage-Max (Vsup) | 1.45 V |
| Surface Mount | YES |
| Technology | CMOS |
| Temperature Grade | OTHER |
| Terminal Form | BALL |
| Terminal Pitch | 0.8000 mm |
| Terminal Position | BOTTOM |
| Length | 13 mm |
| Width | 9 mm |
| Additional Feature | AUTO/SELF REFRESH |
