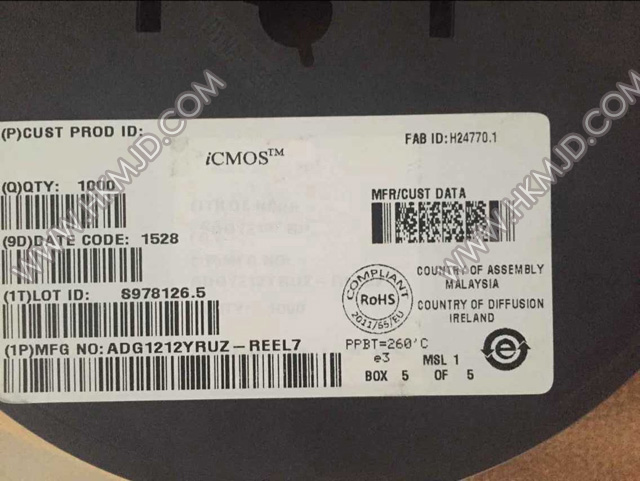

ADG1212YRUZ ADG1212 Analog Switch ICs

Order details

Please contact us to get the newest prices

Part number

ADG1212YRUZ

Product catalog

Analog Switch ICs

Brand

AD

Application

Automatic test equipment

Feature

Manufacturer: Analog Devices Inc.

Product Category: Analog Switch ICs

RoHS: RoHS Compliant Details

Number of Switches: 4 Switch

Configuration: 4 x SPST

On Resistance - Max: 190 Ohms

Switch Voltage - Max: 15 V

On Time - Max: 130 ns

Off Time - Max: 115 ns

Operating Supply Voltage: 12 V

Maximum Operating Temperature: + 125 C

Mounting Style: SMD/SMT

Package / Case: TSSOP-16

Brand: Analog Devices

Dual Supply Voltage: +/- 15 V

Maximum Dual Supply Voltage: +/- 16.5 V

Minimum Dual Supply Voltage: +/- 4.5 V

Minimum Operating Temperature: - 40 C

Operating Temperature Range: - 40 C to + 125 C

Packaging: Tube

Pd - Power Dissipation: 150 uW

Series: ADG1212

Factory Pack Quantity: 96

Supply Current - Max: 380 uA

Supply Type: Single Supply, Dual Supply

Supply Voltage - Max: 16.5 V

Supply Voltage - Min: 5 V

Switch Continuous Current: 25 mA

Data sheet ：
