ALLWINNER A31 ARM Cortex™-A7 Quad-Core

ALLWINNER A31 ARM Cortex™-A7 Quad-Core

CPU

·  ARM Cortex™-A7 Quad-Core

·  256KB L1 Cache

·  1MB L2 Cache

GPU

·  PowerVR™ SGX544MP2

·  Complies with OpenGL ES2.0, OpenCL 1.x, DX 9_3

Video

·  UHD H.264 4Kx2K video decoding

·  Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264,etc.

·  H.264 High Profile 1080P@60fps encoding

·  3840x1080@30fps 3D decoding, BD/SBS/TAB/FP supported

·  3840x1080@30fps 3D encoding

·  Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocol

Display

·  Dual-Channel LVDS 1920x1080@60fps

·  4 lanes MIPI DSI 1920x1200@60fps

·  Dual-channel RGB/CPU LCD 2048x1536@60fps

·  Integrated HDMI1.4 1080p@60fps

Camera

·  Integrated Parallel & MIPI I/F sensor

·  Integrated powerful ISP, supporting Raw Data CMOS sensor

·  Supports 5M/8M/12M CMOS sensor

·  Supports 8/10/12-bit YUV/Bayer sensor

HawkView ISP

·  Static and dynamic defect pixel correction and lens shading correction

·  Anisotropic non-linear Bayer interpolation with false color suppression

·  Programmable color correction, dynamic range compression and contrast enhancement

·  Advanced spatial de-noise filter

·  AE/AF/AWB

·  Anti-flick detection

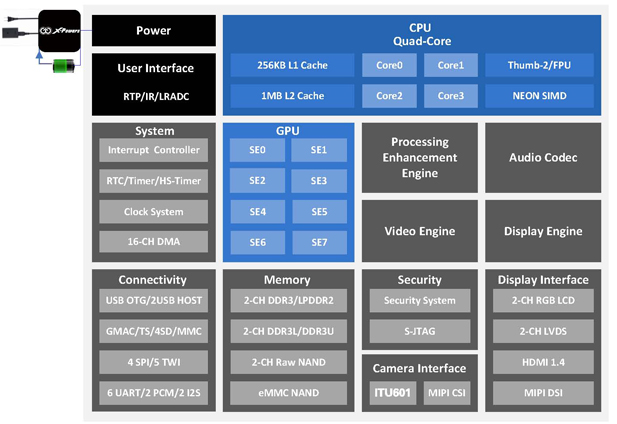

Block Diagram
