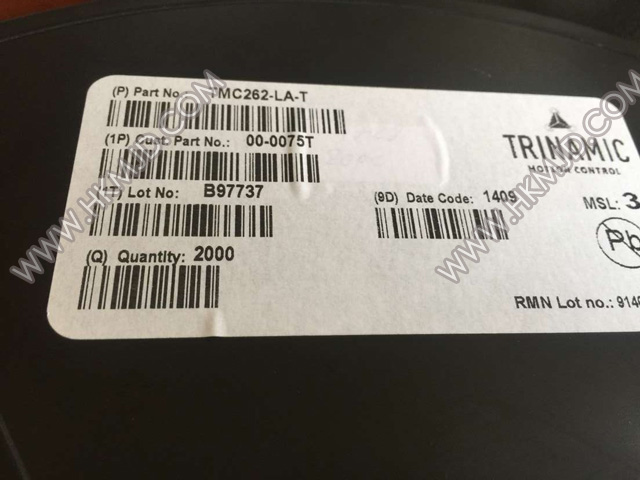

TRINAMIC TMC262 high current high precision microstepping driver IC

Order details

Please contact us to get the newest prices

Part number

TMC262

Family

POWER DRIVER FOR STEPPER MOTORS

Brand

TRINAMIC

Application

bipolar stepper motors

Feature

High Current up to 8A Motor current using external (N&P)

MOSFETs.

Highest Voltage up to 60V DC operating voltage

Highest Resolution up to 256 microsteps per full step

Smallest Size 5x5mm QFN32 package

Low Power Dissipation synchronous rectification

EMI-optimized slope & current controlled gate drivers

Protection & Diagnostics overcurrent, short to GND,

overtemperature & undervoltage

stallGuard2™ high precision sensorless motor load detection

coolStep™ load dependent current control for energy savings

up to 75%

microPlyer™ microstep interpolation for increased

smoothness with coarse step inputs.

spreadCycle™ high-precision chopper for best current sine

wave form and zero crossing

APPLICATIONS

Textile, Sewing Machines

Factory Automation

Printing

Lab Automation

Liquid Handling

Medical

Office Automation

Printer and Scanner

CCTV, Security

ATM, Cash recycler

POS

Pumps and Valves

Heliostat Controller

CNC Machines

Data sheet

Payment methods

1.T/T wire transfer   2.Paypal   3.Western union  4.Cash

Transport way

1.   EMS

2.   TNT

3.   DHL

4.   FedEx

5.   China post

6.   Other special

Warranty

All parts are New And Original enjoy within 45 days return .
