RENESAS HD64F3062B HD64F3062BFBL25V Single Chip Microcomputer

RENESAS

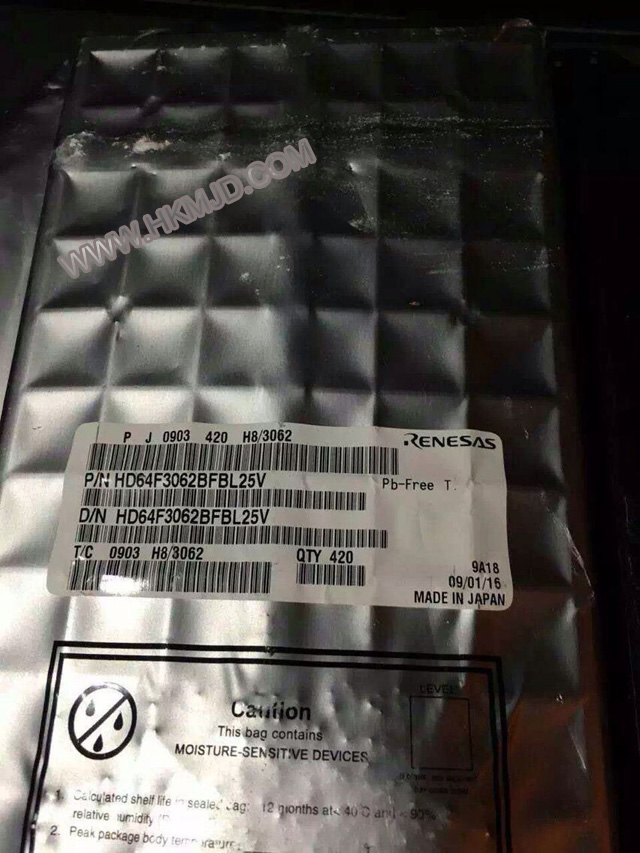

HD64F3062BFBL25V

HD64F3062BFBL25V date sheet

Product category

Single Chip Microcomputer

Application

CPU

Specification

• Interrupt priority registers (IPRs) for setting interrupt priorities

Interrupts other than NMI can be assigned to two priority levels on a module-by-module basis

in interrupt priority registers A and B (IPRA and IPRB).

• Three-level enabling/disabling by the I and UI bits in the CPU’s condition code register (CCR)

and the UE bit in the system control register (SYSCR)

• Seven external interrupt pins

NMI has the highest priority and is always accepted*; either the rising or falling edge can be

selected. For each of IRQ0 to IRQ5, sensing of the falling edge or level sensing can be selected

independently
