TI TL5001A TL5001AQDRQ1 PULSE WIDTH MODULATION CONTROL CIRCUITS

TI

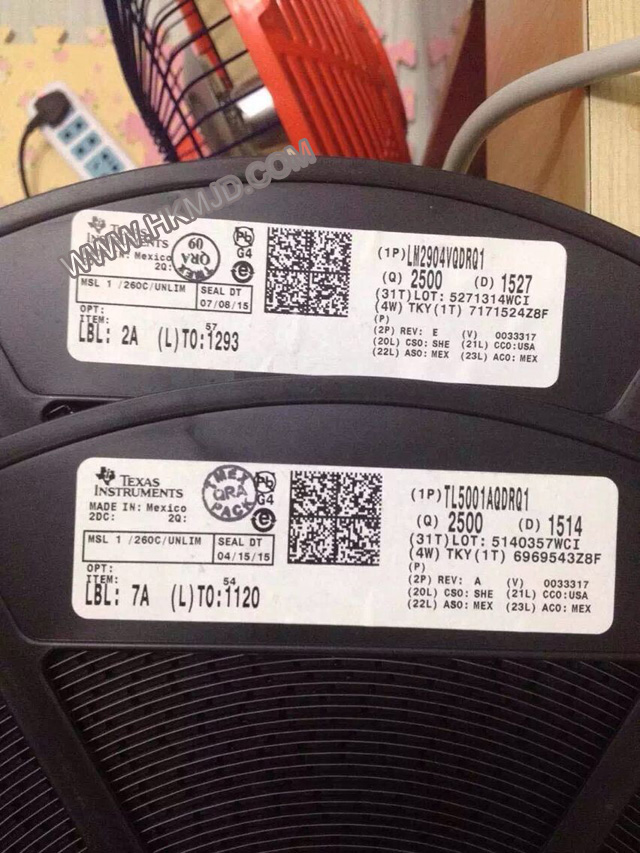

TL5001AQDRQ1

TL5001AQDRQ1 date sheet

Product category

PULSE-WIDTH-MODULATION CONTROL CIRCUITS

Application

(PWM) control

Specification

Qualified for Automotive Applications

• Complete PWM Power Control

• 3.6-V to 40-V Operation

• Internal Undervoltage-Lockout Circuit

• Internal Short-Circuit Protection

• Oscillator Frequency: 20 kHz to 500 kHz

• Variable Dead Time Provides Control Over

Total Range

• ±3% Tolerance on Reference Voltage

• Available in Q-Temperature Automotive

– High-Reliability Automotive Applications

– Configuration Control / Print Support

– Qualification to Automotive Standards
