Skyworks SKY85703-11 5 GHz WLAN Front End Module

Skyworks

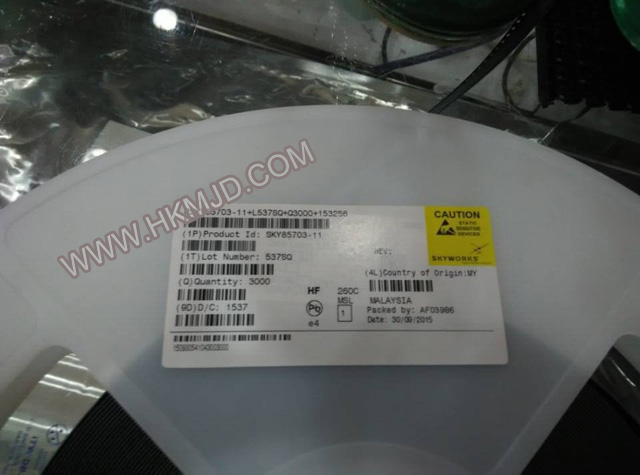

SKY85703-11

SKY85703-11 date sheet

Product category

5 GHz WLAN Front-End Module

Application

802.11ac networking and personal computing systems

Specification

Integrated high performance 5 GHz PA, LNA with bypass, and

T/R switch

Fully-matched input and output

Integrated power detector and directional coupler

Transmit gain: 30 dB

Receive gain: 12 dB

Output power: +16 dBm @ 1.8% EVM, HT80, MCS9

Output power: +17 dBm @ 3% EVM, HT40, MCS7

Small, QFN (16-pin, 3 x 3 mm) package (MSL1, 260 C per

JEDEC J-STD-020)
