Diodes AP7333 Low Dropout Linear Regulator

Diodes

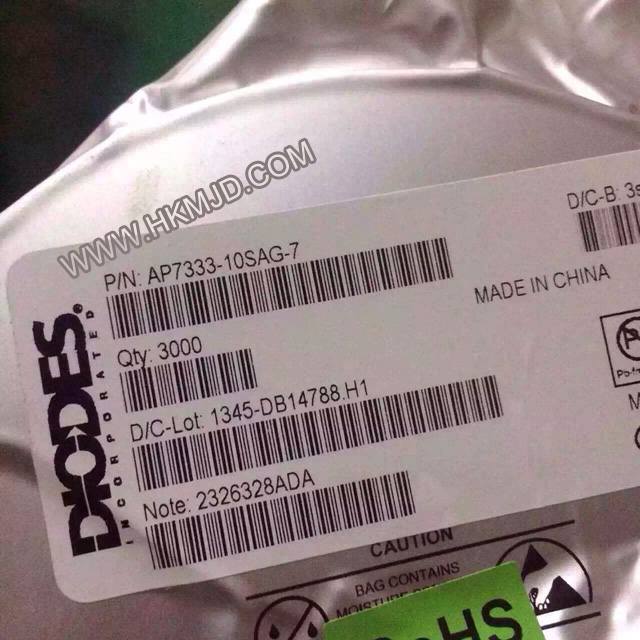

AP7333

AP7333 date sheet

Product category

300mA, Low Quiescent Current, Fast Transient Low Dropout Linear Regulator

Application

XDSL Router

Wireless LAN Cards

Desktop and Notebook Computers

Battery Powered Equipments

Mouse, Keyboards

Description

300mA Low Dropout Regulator in 3-pin package

• Very low IQ over full load: 65µA

• Wide input voltage range: 2V to 6V

• Fixed output options: 1.0V to 3.3V

• PSRR: 65dB typical at 100Hz

• Fast start-up time: 80µs

• Stable with low ESR, 1µF ceramic output capacitor

• Excellent Load/Line Transient Response

• Low dropout: 300mV typical at 300mA

• Current limit protection

• Short circuit protection

• Thermal shutdown protection

• Ambient temperature range: -40ºC to 85°C

• SOT23 and SOT23R: Available in “Green” Molding

Compound (No Br, Sb)
