CY23S05SXC CY23S05 3.3 V Spread Aware Zero Delay Buffer

 CYPRESS

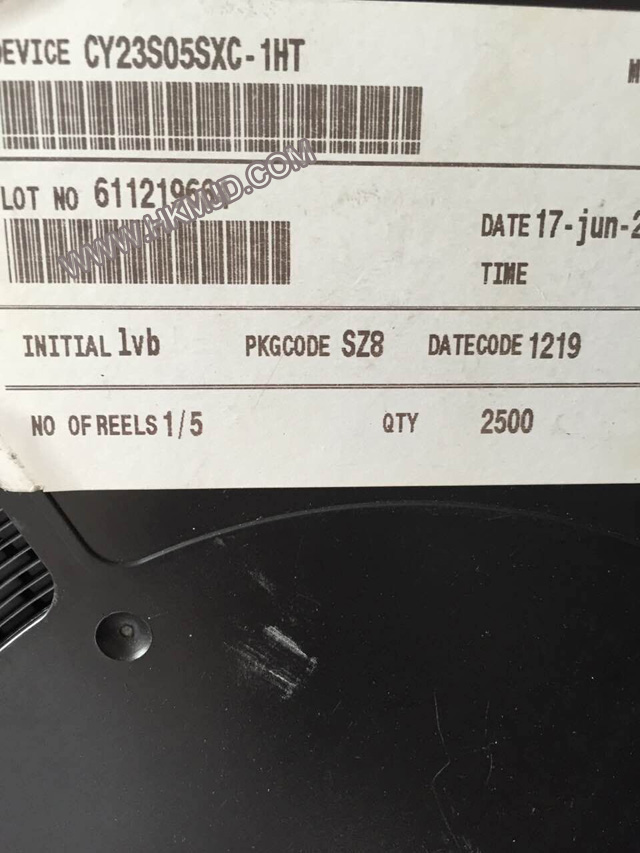

CY23S05SXC-1HT

CY23S05SXC-1HT date sheet

Product category

Low Cost 3.3 V Spread Aware Zero Delay Buffer

Application

for chip and system testing purposes.

Description

10 MHz to 100 MHz and 133 MHz operating range, compatible

with CPU and PCI bus frequencies

Zero input-output propagation delay

Multiple low skew outputs

Output-output skew less than 250 ps

Device-device skew less than 700 ps

One input drives five outputs (CY23S05)

One input drives nine outputs, grouped as 4 + 4 + 1

(CY23S09)

Less than 200 ps Cycle-to-cycle jitter is compatible with

Pentium based systems

Test mode to bypass PLL (CY23S09 only, see Select Input

Decoding for CY23S09 on page 2)

Available in space saving 16-pin, 150-mil SOIC, 4.4 mm

TSSOP (CY23S09) or 8-pin, 150-mil

SOIC package (CY23S05)

3.3 V operation, advanced 0.65 CMOS technology

Spread Aware
