TI INA210 INA210AIDCKR Voltage Out Current Shunt Monitor

TI

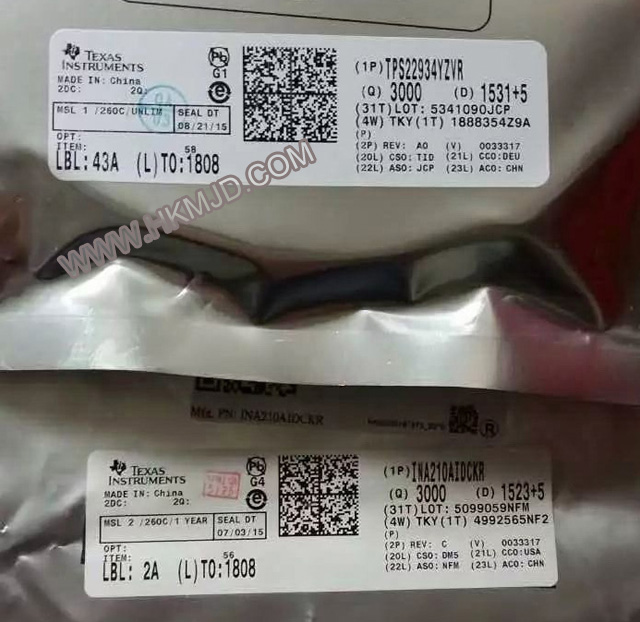

INA210AIDCKR

INA210AIDCKR  date sheet

Product category

Smart Ballast Control IC

Application

Notebook Computers

Cell Phones

Description

Wide Common-Mode Range: –0.3 V to 26 V

Offset Voltage: ±35 μV (Max, INA210)

(Enables Shunt Drops of 10-mV Full-Scale)

Accuracy:

– ±1% Gain Error (Max over Temperature)

– 0.5-μV/°C Offset Drift (Max)

– 10-ppm/°C Gain Drift (Max)

Choice of Gains:

– INA210: 200 V/V

– INA211: 500 V/V

– INA212: 1000 V/V

– INA213: 50 V/V

– INA214: 100 V/V

– INA215: 75 V/V

Quiescent Current: 100 μA (max)

SC70 Package: All Models

Thin UQFN Package: INA210, INA213, INA214
