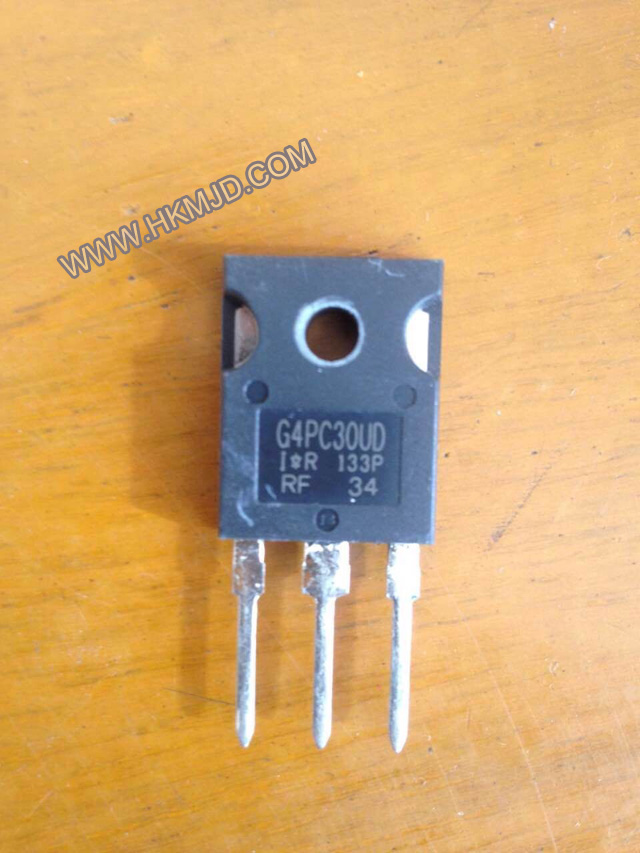

IR IRG4PC30 IRG4PC30UDPBF UltraFast CoPack IGBT

IR

IRG4PC30UDPBF

IRG4PC30 date sheet

Product category

UltraFast CoPack IGBT

Application

Soft recovery diode

Description

Features

UltraFast:Optimized for high operating

frequencies 8-40 kHz in hard switching,>200kHz

in resonant mode

Generation 4 IGBT design provides tighter

parameter distribution and higher efficiency than Generation 3

IGBT co-packaged with HEXFRED ultrafast,

ultra-soft-recovery anti=parallel diodes for use in

bridge configurations

Industry standard TO-247AC package

Benefits

Generation -4 IGBT's offer highest efficiencies avilable

IGBT's optimized for specific application conditions

HEXFRED diodes optimized for performance with

IGBT's. Minimized recovery characteristics require less/no snubbing

Designed to be a "drop-in"replacement for equivalent

industry-standard Generation 3 IR IGBT's
