SANYO LV47004P SANYO LV47004P Monolithic Linear IC

SANYO

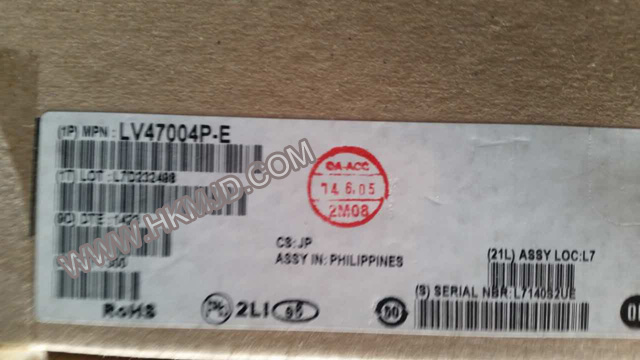

LV47004P

LV47004P date sheet

Product category

4-Channel BTL Power Amplifier for Car Audio Systems

Application

Car Audio Systems

Description

High output:

PO max=41W(typical)(Vcc=15.2V,f=1kHz,Rl=4ohm,Max power)

PO max=24W(typical)(Vcc=14.4V,f=1kHz,THD=10%,Rl=4ohm)

PO max=17W(typical)(Vcc=14.4V,f=1kHz,THD=1%,Rl=4ohm)

Built-in muting function(pin 22)

Built-in Standby switch(pin 4)

Signal output in case of output offset detection,shorting to Vcc,shorting to ground,and load shorting.

Electric mirror noise decrease

Built-in various protection circuit (shorting to ground,shorting to Vcc,load shorting,over voltage and thermal shut down)

No external anti-oscillation part necessary.
