JRC/NJR NJU6533 NJU6533FA2 1/3 1/4 Duty LCD Driver

JRC/NJR

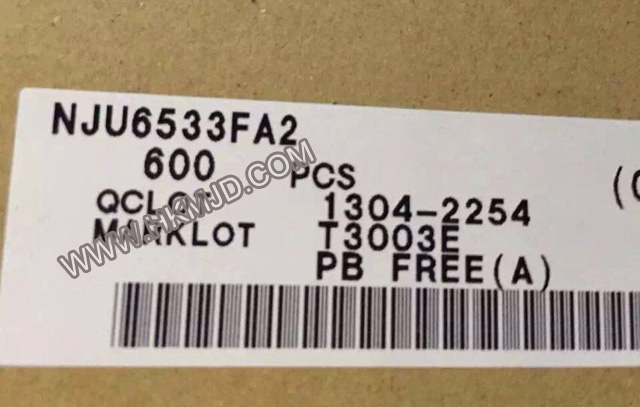

NJU6533FA2

NJU6533 date sheet

Product category

1/3, 1/4 Duty LCD Driver

Application

NJU6533's useful functions and small package meet a wide range of applications

Description

LCD driving circuit :Max. 32outputs (4 outputs as for general purpose ports)

Programmable Duty Ratio

1/3 duty ratio :Driving max. 96 segments

1/4 duty ratio :Driving max. 128 segments

Programmable Bias Ratio :1/2, 1/3 bias ratio

Serial Data Transfer :Shift clock max. 2MHz

Built-in Oscillator :CR oscillation with external resistor, or external oscillation signal input

Display OFF :INHb terminal

Operating Voltage :3V / 5.0V

C-MOS Technology :P-Sub

Package Outline :Bare Chip, QFN48-Q1, QFP52-A2, LQFP52-H2, LQFP48-R3
