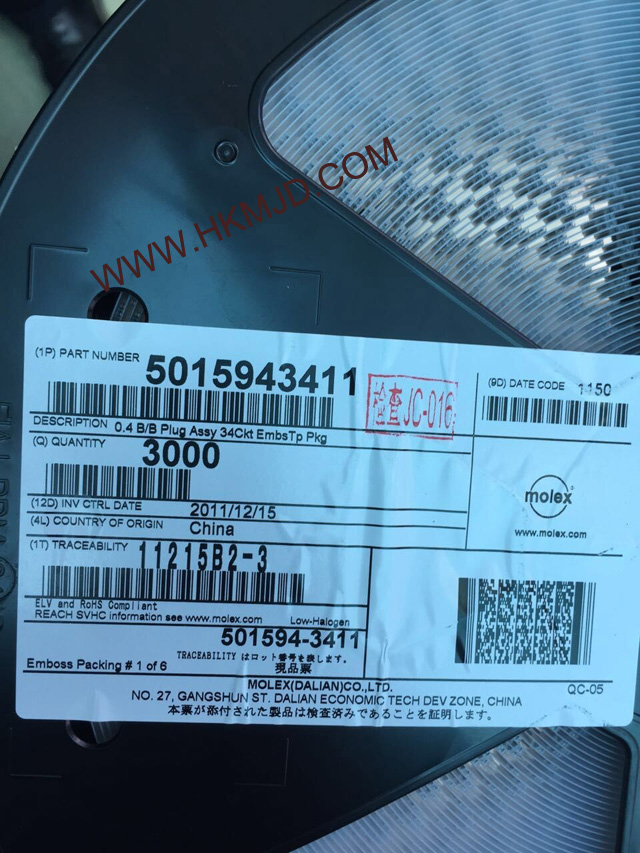

501594-3411 0.40mm Pitch Board to Board Connectors
| Breakaway | No |
|---|---|
| Circuits (Loaded) | 34 |
| Circuits (maximum) | 34 |
| Color - Resin | Black |
| Durability (mating cycles max) | 20 |
| Flammability | 94V-0 |
| Glow-Wire Compliant | No |
| Lock to Mating Part | Yes |
| Mated Height | 0.90mm |
| Material - Metal | Phosphor Bronze |
| Material - Plating Mating | Gold |
| Net Weight | 17.567/mg |
| Number of Rows | 2 |
| Orientation | Vertical |
| PCB Locator | No |
| PCB Retention | Yes |
| Packaging Type | Embossed Tape on Reel |
| Pitch - Mating Interface | 0.40mm |
| Polarized to Mating Part | No |
| Polarized to PCB | No |
| Stackable | No |
| Surface Mount Compatible (SMC) | Yes |
| Temperature Range - Operating | -25°C to +85°C |
| Termination Interface: Style | Surface Mount |
|
|
||
|
PCB Headers |
||
|
Application |
PCB |
|
|
Description |
General Product Family PCB Headers Series 501594 Application Board-to-Board, Signal Overview SlimStack™ 0.40mm Pitch Board-to-Board Connectors Product Name SlimStack™ UPC 800756662350 Physical Breakaway No Circuits (Loaded) 34 Circuits (maximum) 34 Color - Resin Black Durability (mating cycles max) 20 Flammability 94V-0 Glow-Wire Compliant No Lock to Mating Part Yes Mated Height 0.90mm Material - Metal Phosphor Bronze Material - Plating Mating Gold Net Weight 17.567/mg Number of Rows 2 Orientation Vertical PCB Locator No PCB Retention Yes Packaging Type Embossed Tape on Reel Pitch - Mating Interface 0.40mm Polarized to Mating Part No Polarized to PCB No Stackable No Surface Mount Compatible (SMC) Yes Temperature Range - Operating -25°C to +85°C Termination Interface: Style Surface Mount Electrical Current - Maximum per Contact 0.3A Voltage - Maximum 50V AC (RMS)/DC |
|
|
