AD ADUM1311 ADUM1311ARWZ Triple Channel Digital Isolators

AD

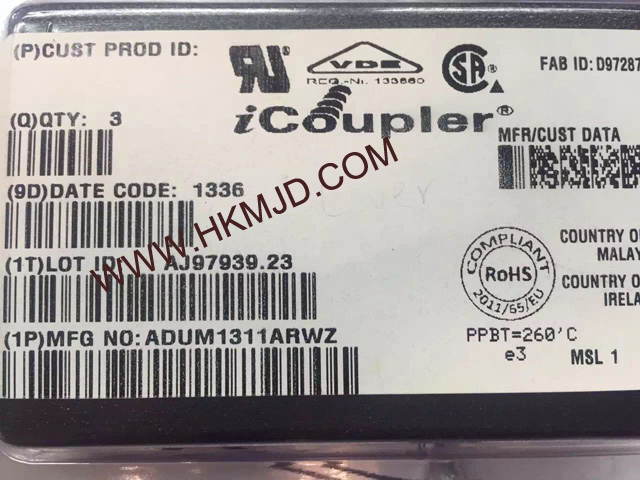

ADUM1311ARWZ

ADUM1311 date sheet

Product category

Triple-Channel Digital Isolators

Application

General-purpose multichannel isolation

SPI interface/data converter isolation

RS-232/RS-422/RS-485 transceiver

Industrial field bus isolation

Description

Low power operation

5 V operation

1.7 mA per channel maximum at 0 Mbps to 2 Mbps

4.0 mA per channel maximum at 2 Mbps to 10 Mbps

3 V operation

1.0 mA per channel maximum at 0 Mbps to 2 Mbps

2.1 mA per channel maximum at 2 Mbps to 10 Mbps

Bidirectional communication

3 V/5 V level translation

Schmitt trigger inputs

High temperature operation: 105°C

Up to 10 Mbps data rate (NRZ)

Programmable default output state

High common-mode transient immunity: >25 kV/μs

16-lead, RoHS-compliant, SOIC wide body package

8.1 mm external creepage

Safety and regulatory approvals

UL recognition: 3750 V rms for 1 minute per UL 1577

CSA Component Acceptance Notice 5A

VDE certificate of conformity

DIN V VDE V 0884-10 (VDE V 0884-10): 2006-12

VIORM = 560 V peak working voltage
