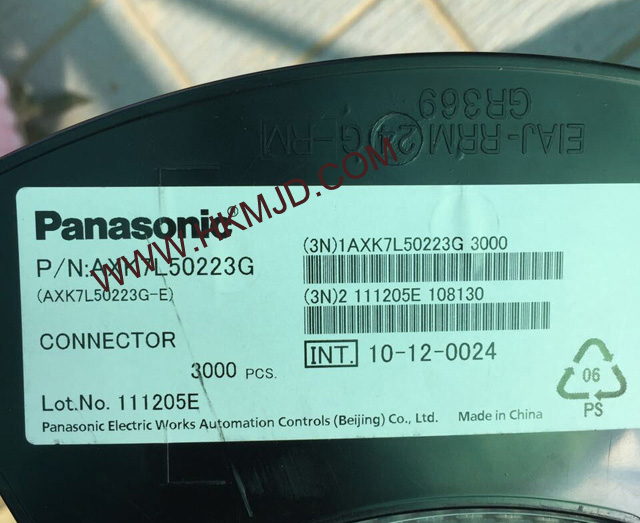

PANASONIC AXK7L50223G Narrow pitch connectors(0.4mm pitch)

PANASONIC

AXK7L50223G

AXK7L50223G  date sheet

Product category

Miniature SOP4-pin type of 60V/350V/400V load voltage GU SOP 1 Form A

Application

Mobile devices, such as cellular phones, digital still cameras and digital video cameras.

Description

1. 0.9 mm mated height low profile

two-piece type connectors

2. Strong resistance to adverse

environments! Utilizes

“ ” construction

for high contact reliability.

3. Improved mating strength between

the socket and header

The simple locking structures provided

for the soldering terminals and the

contact points improve the mating

strength and provide tactile feedback

4. Easy to design product circuits

An insulating wall prevents contact

between the PC board enabling patterns

and the soldering terminals
