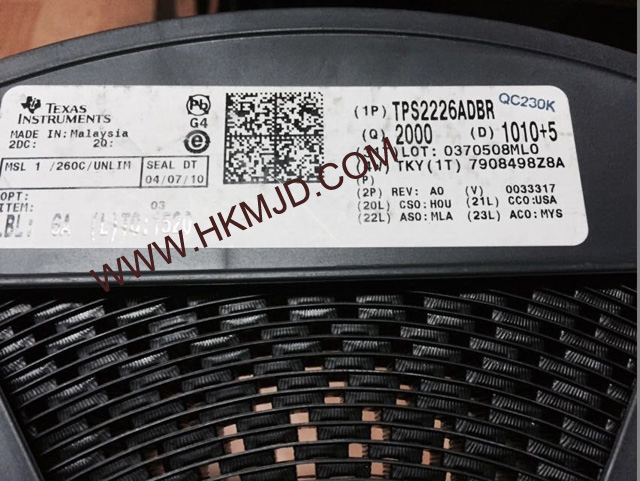

TI TPS2226 TPS2226ADBR PC Card Power Switch


Description

Fully Integrated VCC and Vpp Switching for

3.3 V, 5 V, and 12 V (no 12 V on TPS2223)

Meets Current PC Card Standards

Vpp Output Selection Independent of VCC

12-V and 5-V Supplies Can Be Disabled

TTL-Logic Compatible Inputs

Short-Circuit and Thermal Protection

24-Pin HTSSOP, 24- or 30-Pin SSOP

140-µA (Typical) Quiescent Current from 3.3-V Input

Break-Before-Make Switching Power-On Reset

−40°C to 85°C Operating Ambient Temperature Range
