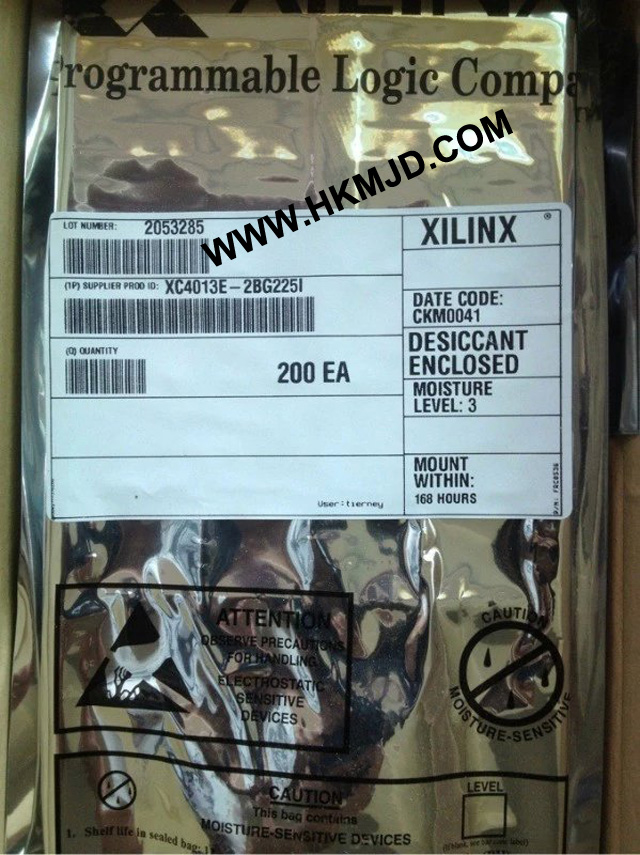

XILINX XC4013E 2BG225I XC4000E and XC4000X Series Field Programmable Gate Arrays

Description


High Performance — 3.3 V XC4000XL

High Capacity — Over 180,000 Usable Gates

5 V tolerant I/Os on XC4000XL

0.35 µm SRAM process for XC4000XL

Additional Routing Over XC4000E

- almost twice the routing capacity for high-density designs

Buffered Interconnect for Maximum Speed Blocks

Improved VersaRingTM I/O Interconnect for Better Fixed

Pinout Flexibility

12 mA Sink Current Per XC4000X Output

Flexible New High-Speed Clock Network

- Eight additional Early Buffers for shorter clock delays

- Virtually unlimited number of clock signals

Optional Multiplexer or 2-input Function Generator on Device Outputs

Four Additional Address Bits in Master Parallel

Configuration Mode
