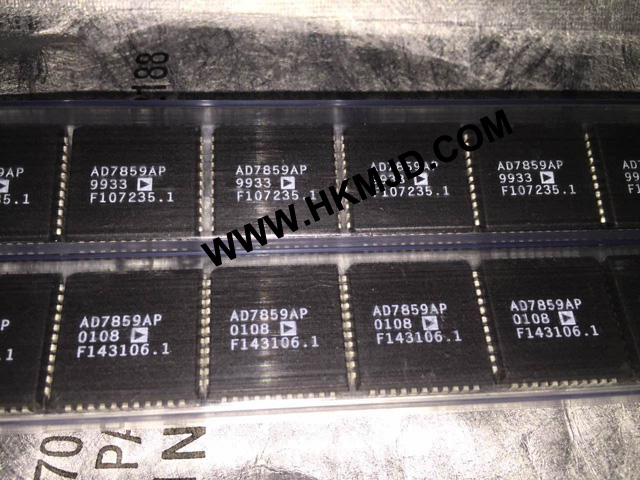

AD AD7859 AD7859AP 3V to 5V Single Supply ADCs

Description


Features

Specified for VDD of 3 V to 5.5 V

AD7859–200 kSPS; AD7859L–100 kSPS

System and Self-Calibration

Low Power

Normal Operation

AD7859: 15 mW (VDD = 3 V)

AD7859L: 5.5 mW (VDD = 3 V)

Using Automatic Power-Down After Conversion (25 mW)

AD7859: 1.3 mW (VDD = 3 V 10 kSPS)

AD7859L: 650 mW (VDD = 3 V 10 kSPS)

Flexible Parallel Interface:

16-Bit Parallel/8-Bit Parallel

44-Pin PQFP and PLCC Packages

APPLICATIONS

Battery-Powered Systems (Personal Digital Assistants,

Medical Instruments, Mobile Communications)

Pen Computers

Instrumentation and Control Systems

High Speed Modems
