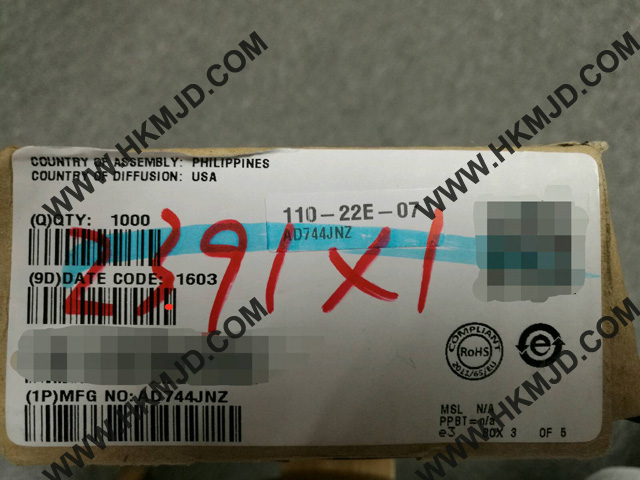

AD AD744 AD744JNZ Precision Amplifiers Prec 500ns

Description


Features

AC PERFORMANCE

500 ns Settling to 0.01% for 10 V Step

1.5 s Settling to 0.0025% for 10 V Step

75 V/s Slew Rate

0.0003% Total Harmonic Distortion (THD)

13 MHz Gain Bandwidth – Internal Compensation

>200 MHz Gain Bandwidth (G = 1000)

External Decompensation

>1000 pF Capacitive Load Drive Capability with

10 V/s Slew Rate – External Compensation

DC PERFORMANCE

0.5 mV max Offset Voltage (AD744B)

10 V/C max Drift (AD744B)

250 V/mV min Open-Loop Gain (AD744B)

Available in Plastic Mini-DIP, Plastic SOIC, Hermetic

Cerdip, Hermetic Metal Can Packages and Chip Form

Surface Mount (SOIC) Package Available in Tape and

Reel in Accordance with EIA-481A Standard

APPLICATIONS

Output Buffers for 12-Bit, 14-Bit and 16-Bit DACs,

ADC Buffers, Cable Drivers, Wideband

Preamplifiers and Active Filters
