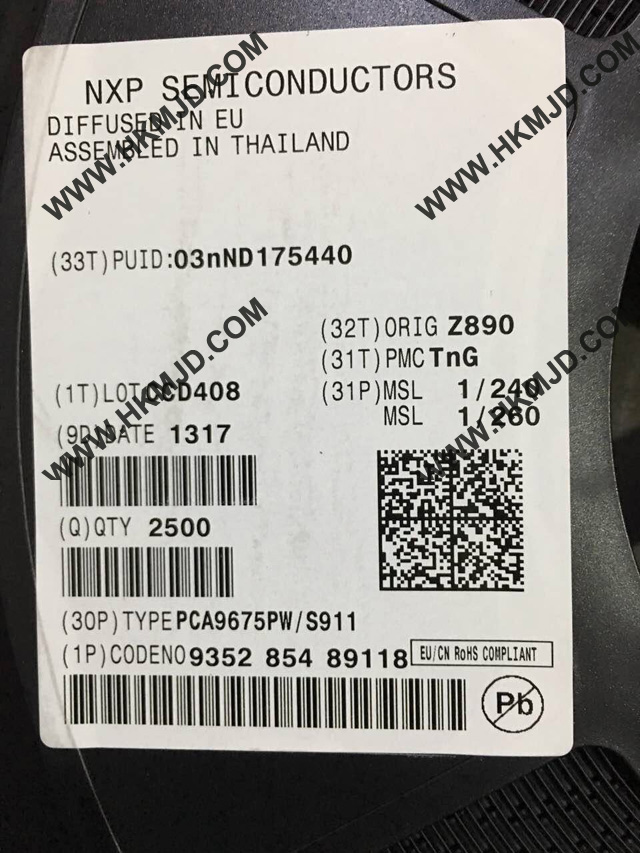

NXP PCA9675 PCA9675PW Remote expander microcontroller

Features


FEATURES

1 MHz I2C-bus interface

Compliant with the I2C-bus Fast and Standard modes

SDA with 30 mA sink capability for 4000 pF buses

2.3 V to 5.5 V operation with 5.5 V tolerant I/Os

16-bit remote I/O pins that default to inputs at power-up

Latched outputs with 25 mA sink capability for directly driving LEDs

Total package sink capability of 400 mA

Active LOW open-drain interrupt output

64 programmable slave addresses using 3 address pins

Readable device ID (manufacturer, device type, and revision)

Low standby current

40 C to +85 C operation

ESD protection exceeds 2000 V HBM per JESD22-A114 and 1000 V CDM per

JESD22-C101

Latch-up testing is done to JEDEC standard JESD78 which exceeds 100 mA

Applications

LED signs and displays

Servers

Industrial control

PLCs

Cellular telephones

Gaming machines

Instrumentation and test measurement
