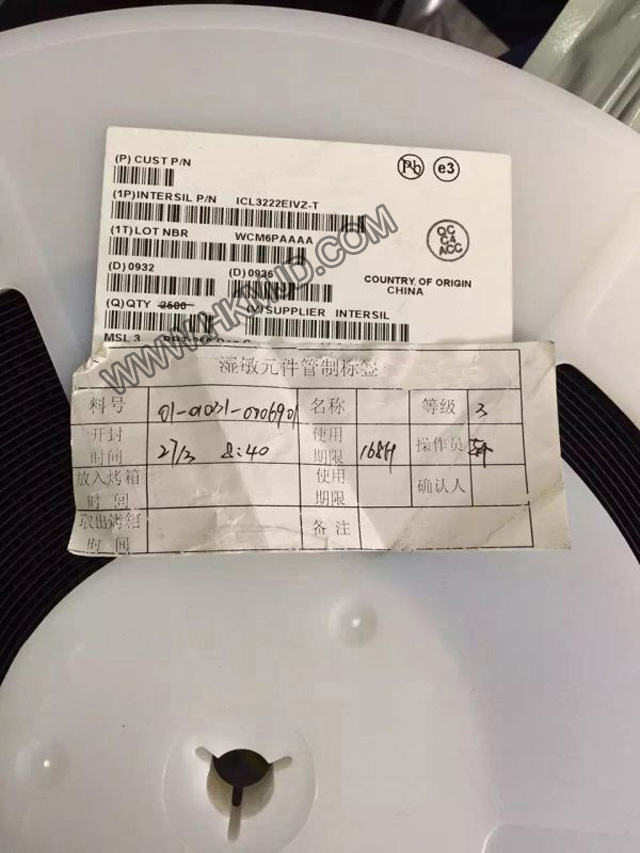

Intersil ICL3222E ICL3222EIVZ RS-232 Transmitters Receivers

Features


FEATURES

• ESD Protection for RS-232 I/O Pins to ±15kV(IEC61000)

• Drop in Replacements for MAX3221E, MAX3222E,

MAX3223E, MAX3232E, MAX3241E, MAX3243E,SP3243E

• ICL3221E is a Low Power, Pin Compatible Upgrade for 5V MAX221E

• ICL3222E is a Low Power, Pin Compatible Upgrade for 5V MAX242E, and SP312E

• ICL3232E is a Low Power Upgrade for HIN232E, ICL232 and Pin Compatible Competitor Devices

• RS-232 Compatible with VCC = 2.7V

• Meets EIA/TIA-232 and V.28/V.24 Specifications at 3V

• Latch-Up Free

• On-Chip Voltage Converters Require Only Four External 0.1µF Capacitors

• Manual and Automatic Power-Down Features

• Guaranteed Mouse Driveability (ICL324xE Only)

• Receiver Hysteresis For Improved Noise Immunity

• Guaranteed Minimum Data Rate. . . . . . . . 250kbps

• Wide Power Supply Range . . . . Single +3V to +5.5V

• Low Supply Current in Power-Down State . . . . . 1µA

• Pb-Free Available (RoHS Compliant)

APPLICATIONS

• Any System Requiring RS-232 Communication Ports

- Battery Powered, Hand-Held, and Portable Equipment

- Laptop Computers, Notebooks, Palmtops

- Modems, Printers and other Peripherals

- Digital Cameras

- Cellular/Mobile Phones
