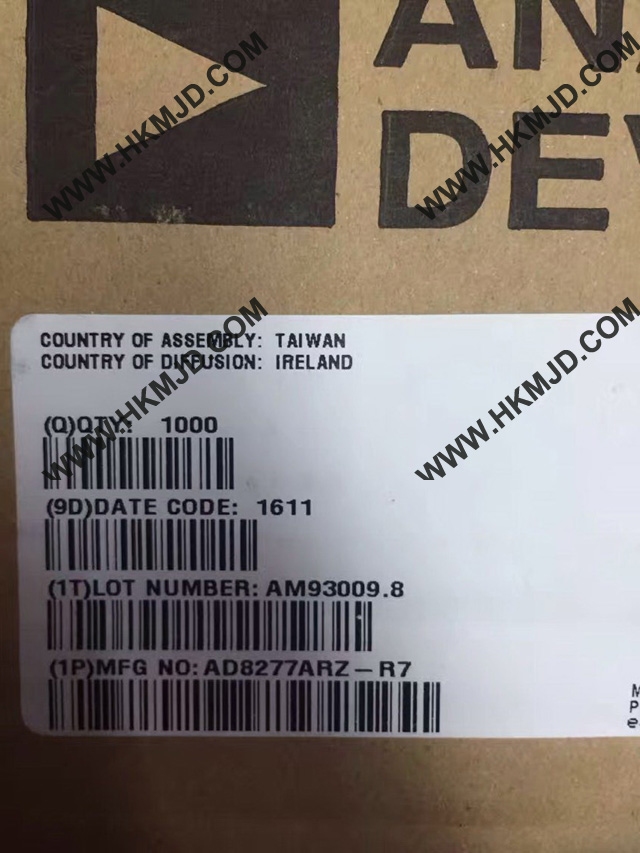

AD8277 AD8277ARZ Unity-Gain Difference Amplifier

Features


FEATURES

Wide input range beyond supplies

Rugged input overvoltage protection

Low supply current: 200 μA maximum per channel

Low power dissipation: 0.5 mW at VS = 2.5 V

Bandwidth: 550 kHz

CMRR: 86 dB minimum, dc to 10 kHz

Low offset voltage drift: ±2 μV/°C maximum (B Grade)

Low gain drift: 1 ppm/°C maximum (B Grade)

Enhanced slew rate: 1.1 V/μs

Wide power supply range:

Single supply: 2 V to 36 V

Dual supplies: ±2 V to ±18 V

Applications

Voltage measurement and monitoring

Current measurement and monitoring

Differential output instrumentation amplifier

Portable, battery-powered equipment

Test and measurement
