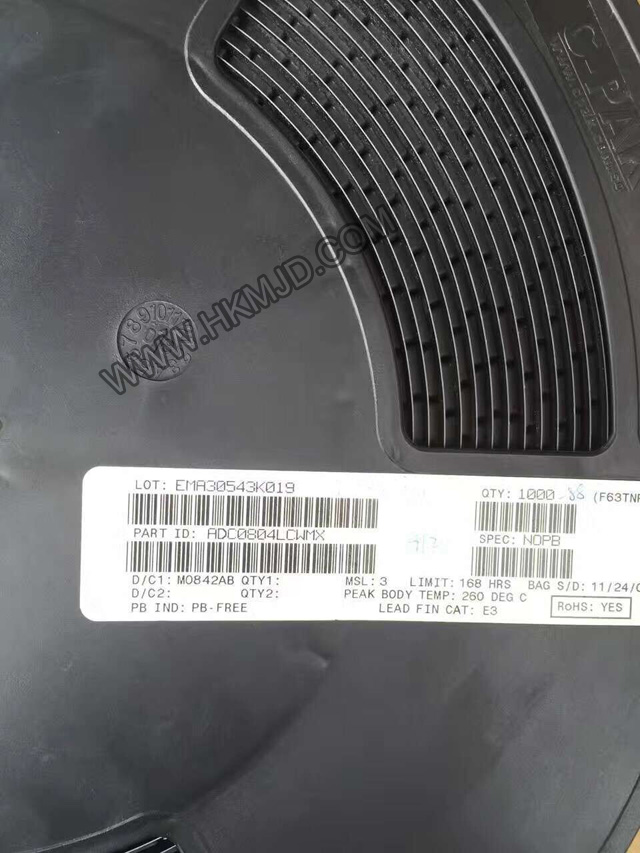

ADC0804 ADC0804LCWMX Analog to Digital Converter IC

Features


FEATURES

Part Status  Active

Number of Bits  8

Sampling Rate (Per Second)  10k

Number of Inputs    1

Input Type  Differential

Data Interface   Parallel

Configuration     ADC

Number of A/D Converters   1

Architecture SAR

Reference Type External, Supply

Voltage - Supply, Analog 4.5 V ~ 6.3 V

Voltage - Supply, Digital  4.5 V ~ 6.3 V

Operating Temperature  -40°C ~ 85°C

Applications

Operates With Any 8-Bit µP Processors or as a Stand-Alone Device

Interface to Temp Sensors, Voltage Sources, and Transducers
