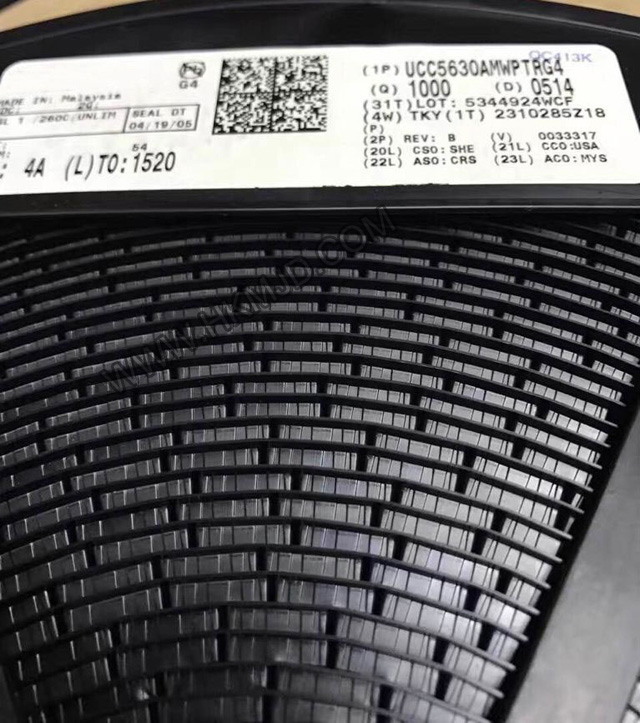

UCC5630A UCC5630AMWPTR Multimode SCSI 9 Line Terminator

Features


FEATURES

Auto Selection Single Ended (SE) or

Low Voltage Differential (LVD)Termination

Meets SCSI-1, SCSI-2, Ultra2 (SPI-2

LVD), Ultra3, Ultra160 (SPI-3) and

Ultra320 (SPI-4) Standards

2.7V to 5.25V Operation

Differential Failsafe Bias

Thermal packaging for low junction

temperature and better MTBF

Master/Slave Input

Supports Active Negation

3pF Channel Capacitance

Applications

HVD SCSI device, it switches to a high impedance state
