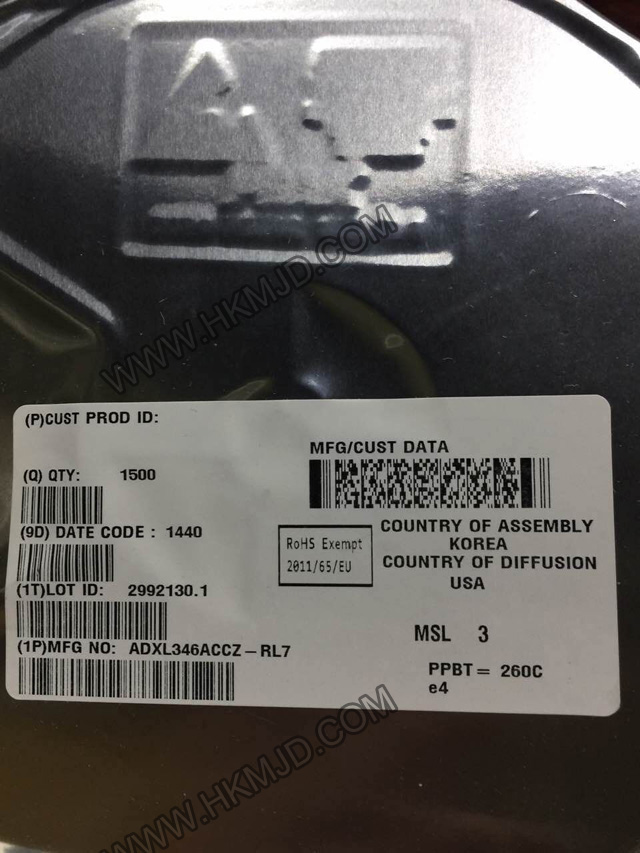

ADXL346 ADXL346ACCZ 3-Axis ±2 g/±4 g/±8 g/±16g Ultralow Power Digital Accelerometer

Features


FEATURES

Ultralow power: as low as 23 μA in measurement mode and

0.2 μA in standby mode at VS = 2.6 V (typical)

Power consumption scales automatically with bandwidth

User-selectable resolution

Fixed 10-bit resolution

Full resolution, where resolution increases with g range,

up to 13-bit resolution at ±16 g (maintaining 4 mg/LSB

scale factor in all g ranges)

Embedded memory management system with FIFO

technology minimizes host processor load

Single tap/double tap detection

Activity/inactivity monitoring

Free-fall detection

Concurrent four- and six-position orientation detection

Supply and I/O voltage range: 1.7 V to 2.75 V

SPI (3- and 4-wire) and I2C digital interfaces

Flexible interrupt modes mappable to either interrupt pin

Measurement ranges selectable via serial command

Bandwidth selectable via serial command

Wide temperature range (−40°C to +85°C)

10,000 g shock survival

Pb free/RoHS compliant

Small and thin: 3 mm x 3 mm x0.95 mm LGA package

Applications

Handsets

Medical instrumentation

Gaming and pointing devices

Industrial instrumentation

Personal navigation devices

Hard disk drive (HDD) protection
