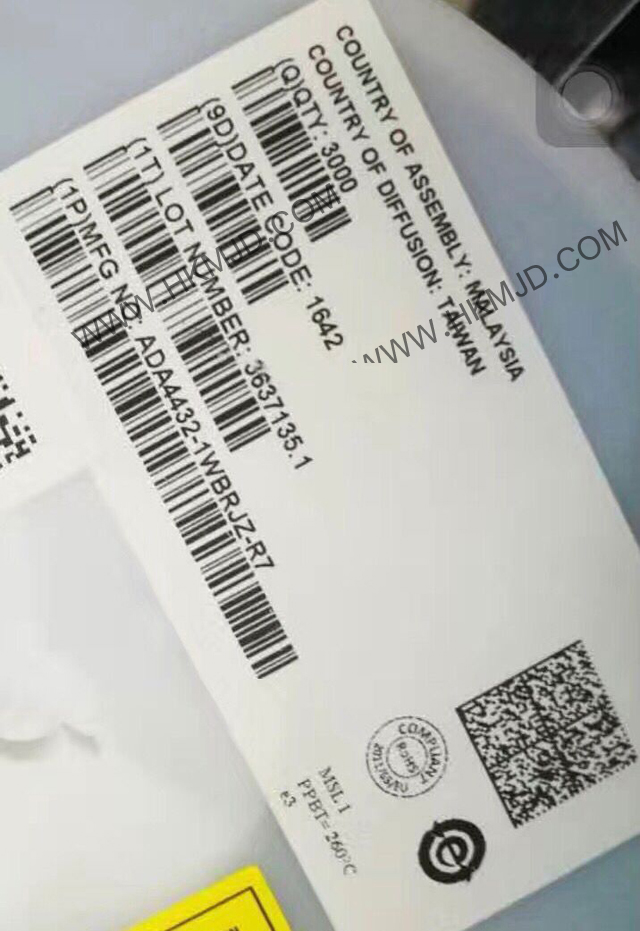

ADA4432-1 ADA4432-1WBRJZ SD Video Filter Amplifier IC

Details


FEATURES

Qualified for automotive applications

Output overvoltage (short-to-battery) protection up to 18 V

Short-to-battery output flag for wire diagnostics

Output short-to-ground protection

Fifth-order, low-pass video filter

0.1 dB flatness to 3 MHz

−3 dB bandwidth of 10 MHz

45 dB rejection at 27 MHz

Ultralow power-down current: 13.5 μA typical

Low quiescent current

7.6 mA typical (ADA4432-1)

13.2 mA typical (ADA4433-1)

Low supply voltage: 2.6 V to 3.6 V

Small packaging

8-lead, 3 mm × 3 mm LFCSP

6-lead SOT-23 (ADA4432-1 only)

Wide operating temperature range: −40°C to +125°C
