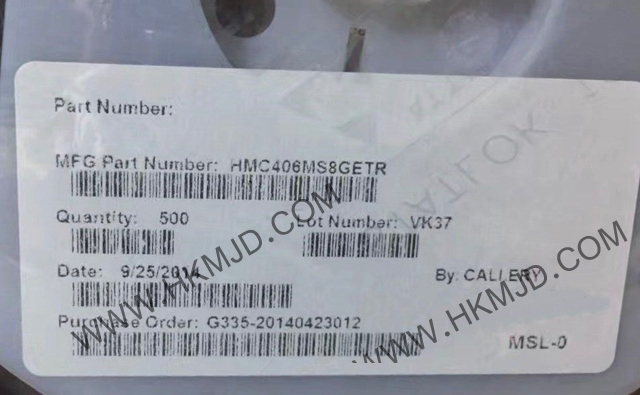

HMC406MS8GE HMC406MS8GETR RF Amplifier IC WiMax WLAN 5GHz ~ 6GHz

Details


FEATURES

Gain: 17 dB

Saturated Power: +29 dBm

38% PAE

Supply Voltage: +5V

Power Down Capability

Low External Part Count

Standard Package    500

Packaging   Tape & Reel (TR)

Part Status  Active

Frequency   5GHz ~ 6GHz

P1dB     27dBm

Gain     17dB

Noise Figure 6dB

RF Type      WiMax, WLAN

Voltage - Supply 5V

Current - Supply 300mA

Test Frequency  5.8GHz

Package / Case  8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad

Supplier Device Package 8-MSOP-EP
