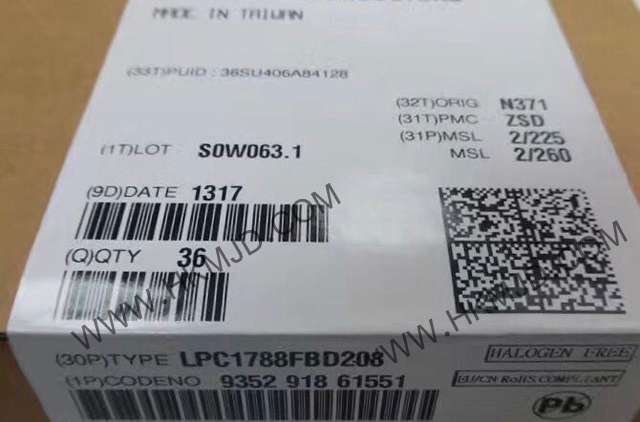

LPC1788FBD208 ARM Microcontroller Integrated Circuit

Details


FEATURES

Manufacturer     NXP USA Inc.

Series   LPC17xx

Packaging   Tray

Part Status  Active

Core Processor  ARM® Cortex®-M3

Core Size    32-Bit

Speed   120MHz

Connectivity CAN, EBI/EMI, Ethernet, I²C, Microwire, Memory Card, SPI, SSI, SSP, UART/USART, USB OTG

Peripherals  Brown-out Detect/Reset, DMA, I²S, LCD, Motor Control PWM, POR, PWM, WDT

Number of I/O  165

Program Memory Size    512KB (512K x 8)

Program Memory Type   FLASH

EEPROM Size     4K x 8

RAM Size     96K x 8

Voltage - Supply (Vcc/Vdd)   2.4 V ~ 3.6 V

Data Converters A/D 8x12b, D/A 1x10b

Oscillator Type  Internal

Operating Temperature  -40°C ~ 85°C (TA)

Package / Case  208-LQFP

Supplier Device Package 208-LQFP (28x28)
