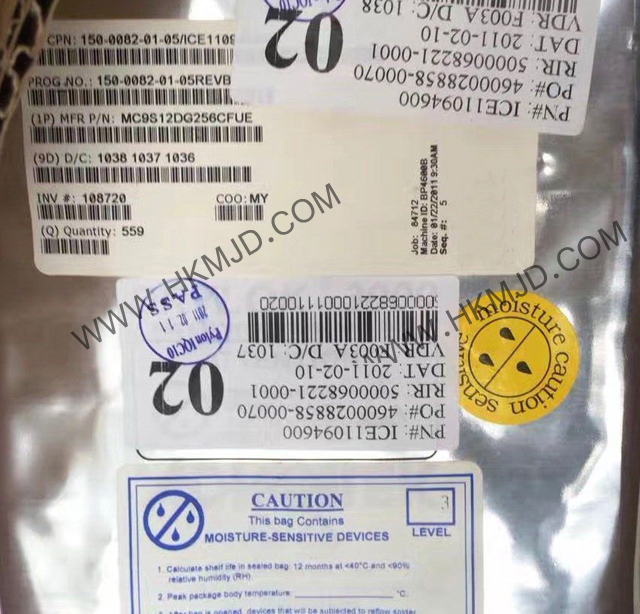

16 bit Microcontroller IC MC9S12DG256CFUE MC9S12DG256

Details


FEATURES

Product Category:    16-bit Microcontrollers - MCU

Manufacturer:    NXP

RoHS:   RoHS Compliant Details

Mounting Style:  SMD/SMT

Package / Case: PQFP-80

Core:    HCS12

Data Bus Width: 16 bit

Maximum Clock Frequency:   25 MHz

Program Memory Size:   256 kB

Data RAM Size:  12 kB

ADC Resolution: 10 bit

Operating Supply Voltage:    5 V

Maximum Operating Temperature:    + 85 C

Series:  S12D

Packaging:   Tray

Brand:   NXP / Freescale

Data RAM Type: RAM

Data ROM Size:  4 kB

Data ROM Type:      EEPROM

Height:  2.4 mm

Interface Type:  CAN, I2C, SCI, SPI

Length: 14 mm

Minimum Operating Temperature:     - 40 C

Number of ADC Channels:    8 Channel

Number of I/Os:      59 I/O

Number of Timers/Counters: 1 Timer

Processor Series:     HCS12

Product:      MCU

Program Memory Type:  Flash EEPROM

Factory Pack Quantity:   420

Width:   14 mm
