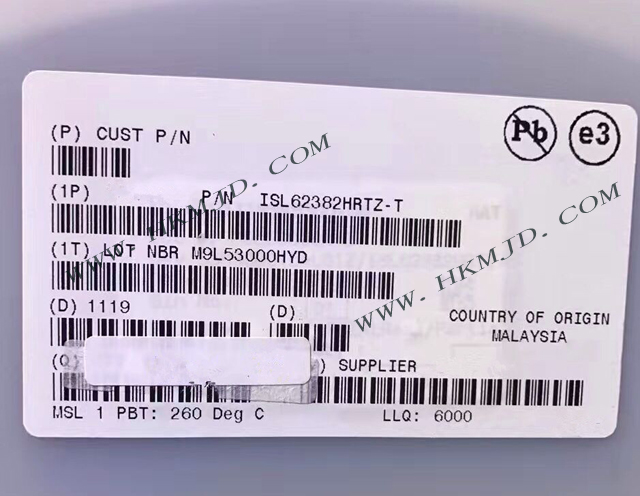

ISL62382 ISL62382HRTZ For Power Supply Controller

Details


FEATURES

• High Performance R3 Technology

• Fast Transient Response

• ±1% Output Voltage Accuracy: -10°C to +100°C

• Two Fully Programmable Switch-Mode Power Supplies with Independent Operation

• Programmable Switching Frequency

• Integrated MOSFET Drivers and Bootstrap Diode

• Adjustable (+1.2V to +5V) LDO Output

• Fixed +5V LDO Output with Automatic Switchover to SMPS2

• Internal Soft-Start and Soft-Stop Output Discharge

• Wide Input Voltage Range: +5.5V to +25V

• Full and Ultrasonic Pulse-Skipping Mode

• Power-Good Indicator

• Overvoltage, Undervoltage and Overcurrent Protection

• Fault Identification by PGOOD Pull-Down Resistance

• Thermal Monitor and Protection

• Pb-Free (RoHS Compliant)

The ISL62381, ISL62382, ISL62383, ISL62381C, ISL62382C and ISL62383C family of controllers generate supply voltages for battery-powered systems.

The ISL62381, ISL62382, ISL62381C and ISL62382C are available in a 32 Ld 5x5 TQFN package, and the ISL62383 and ISL62383C are available in a 28 Ld 4x4 TQFN package.

This family of controllers can operate over the extended temperature range (-10°C to +100°C).
