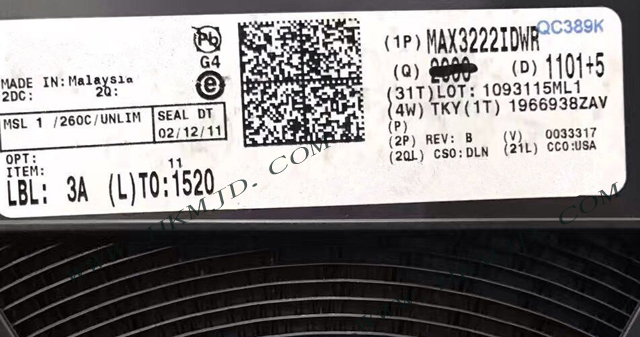

MAX3222 MAX3222IDWR RS-232 Interface IC

Details


FEATURES

• RS-232 Bus-Pin ESD Protection Exceeds ±15 kV Using Human-Body Model (HBM)

• Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards

• Operates With 3-V to 5.5-V VCC Supply

• Operates Up to 250 kbps

• Two Drivers and Two Receivers

• Low Standby Current: 1 µA Typical

• External Capacitors: 4 × 0.1 µF

• Accepts 5-V Logic Input With 3.3-V Supply

• Alternative High-Speed Pin-Compatible Device(1 Mbps)– SNx5C3222

The MAX3222 consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV ESD protection pin to pin (serial-port connection pins,including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector.
