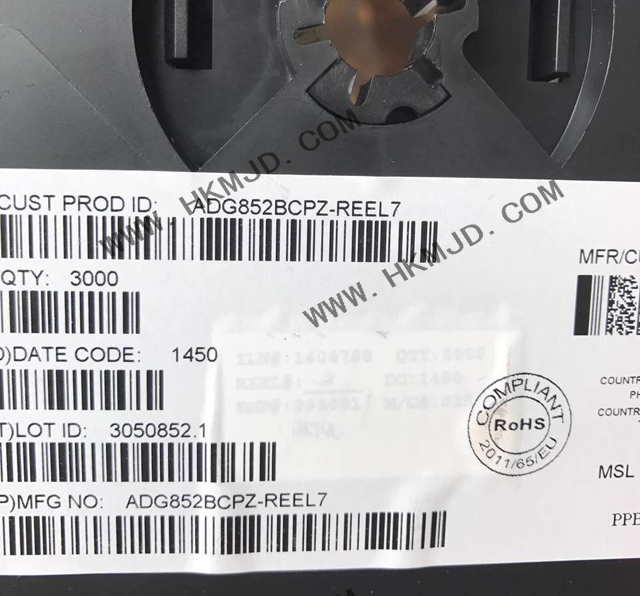

ADG852 ADG852BCPZ Analog Switch IC



Manufacturer

Analog Devices

Manufacturer Part

ADG852BCPZ

Description

The ADG852 is a low voltage CMOS single-pole, double-throw

(SPDT) switch. This device offers ultralow on resistance of less

than 1 Ω over the full temperature range. The ADG852 is fully

specified for 5.5 V and 3.3 V supply operation.

Application

Cellular phones

PDAs

MP3 players

Power routing

Battery-powered systems

PCMCIA cards

Modems

Audio and video signal routing

Communication systems

Datasheet

ADG852

Details




FEATURES

0.8 Ω typical on resistance

Less than 1 Ω maximum on resistance at 85°C

1.8 V to 5.5 V single supply

High current carrying capability: 300 mA continuous

Rail-to-rail switching operation

Fast-switching times: <17 ns

Typical power consumption: <0.1 µW

1.30 mm × 1.60 mm, 10-lead mini LFCSP
