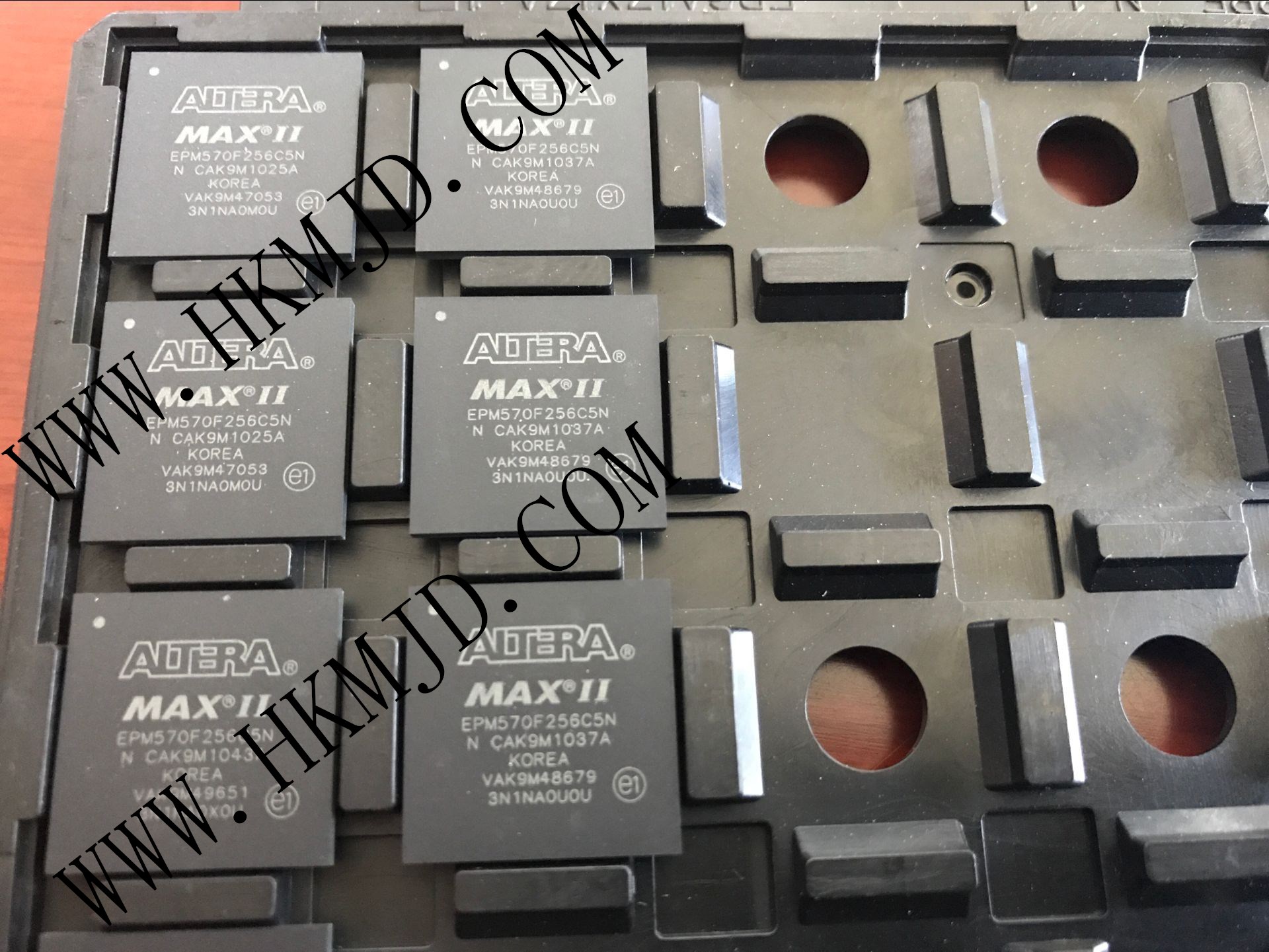

EPM570F256C5N Complex Programmable Logic Devices CPLD

Details


Product Category:CPLD - Complex Programmable Logic Devices

Manufacturer:Intel

RoHS:   RoHS Compliant Details

Product:MAX II

Number of Macrocells:440

Number of Logic Array Blocks - LABs:57

Maximum Operating Frequency:304 MHz

Propagation Delay - Max:5.4 ns

Number of I/Os:160 I/O

Operating Supply Voltage:2.5 V, 3.3 V

Minimum Operating Temperature:0 C

Maximum Operating Temperature:+ 70 C

Mounting Style:SMD/SMT

Package / Case:FBGA-256

Packaging:Tray

Brand:   Intel / Altera

Memory Type:   Flash

Number of Logic Elements:570

Operating Supply Current:55 mA

Series:  EPM570

Factory Pack Quantity:90

Supply Voltage - Max:    3.6 V

Supply Voltage - Min:     2.375 V

Total Memory:   8192 bit

Tradename:MAX II
