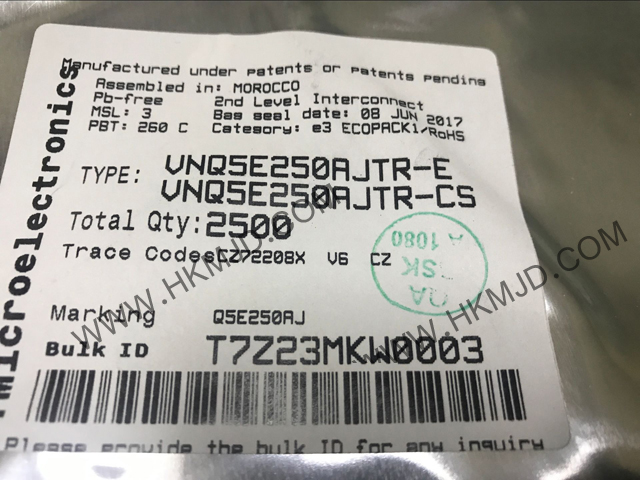

Quad Channel High-side Driver IC VNQ5E250AJ VNQ5E250AJTR

Details


Standard Package 2,500

Manufacturer STMicroelectronics

Series   VIPower™

Packaging  Tape & Reel (TR)

Part Status Active

Switch Type General Purpose

Number of Outputs 4

Ratio - Input:Output 1:1

Output Configuration      High Side

Output Type N-Channel

Interface On/Off

Voltage - Load   4 V ~ 28 V

Voltage - Supply (Vcc/Vdd) Not Required

Current - Output (Max) 3.5A

Rds On (Typ)    250 mOhm (Max)

Input Type Non-Inverting

Features Auto Restart

Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage

Operating Temperature -40°C ~ 150°C (TJ)

Package / Case 16-PowerFSOP (0.154", 3.90mm Width)

Supplier Device Package PowerSSO-16
