Manufacturer Part |
|
IC DAC 16BIT QD 1GSPS 196CSBGA 16 Bit Digital to Analog Converter 4 196-CSPBGA (15x15) |
|
Wireless infrastructure LTE, TD-SCDMA, WiMAX, W-CDMA, CDMA2000, GSM MIMO/transmit diversity Digital high or low IF synthesis |
|
Datasheet |
Details |
FEATURES Single-carrier W-CDMA ACLR = 80 dBc at 150 MHz IF Channel-to-channel isolation > 90 dB Analog output Adjustable 8.7 mA to 31.7 mA RL = 25 Ω to 50 Ω Novel 2×, 4×, and 8× interpolator eases data interface On-chip fine complex NCO allows carrier placement anywhere in DAC bandwidth High performance, low noise PLL clock multiplier Multiple chip synchronization interface Programmable digital inverse sinc filter Auxiliary DACs allow for offset control Gain DACs allow for I and Q gain matching Programmable I and Q phase compensation Digital gain control Flexible LVDS digital I/F supports 32- or 16-bit bus width 196-ball CSP_BGA, 12 mm × 12 mm

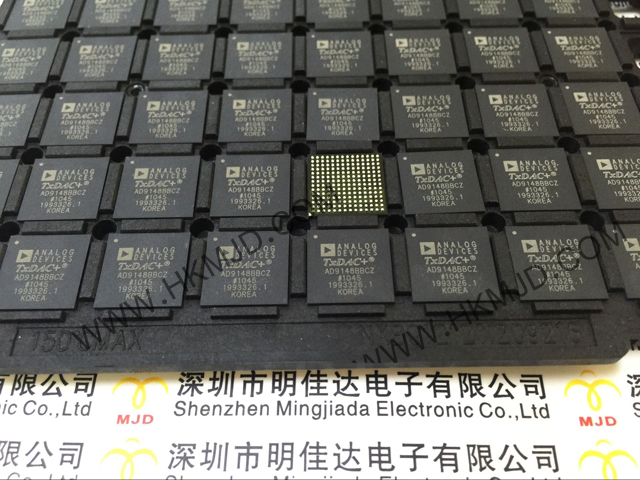

The AD9148 is a quad, 16-bit, high dynamic range, digital-to-analog converter (DAC) that provides a sample rate of 1000 MSPS. |
