Manufacturer Part |
|
|

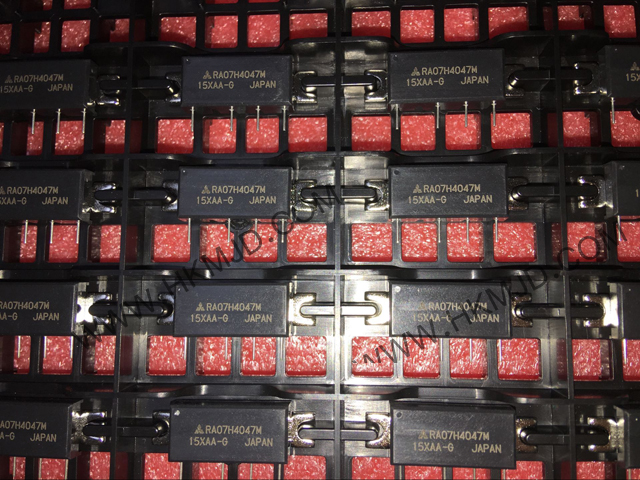

The RA07H4047M is a 7-watt RF MOSFET Amplifier Module for 12.5-volt portable radios that operate in the 400- to 470-MHz range. |
|
|
This module is designed for non-linear FM modulation, but may also be used for linear modulation by setting the drain quiescent current with the gate voltage and controlling the output power with the input power. |
|
|
Datasheet |
|
Details |
|
FEATURES • Enhancement-Mode MOSFET Transistors • Pout>7W @ VDD=12.5V, VGG=3.5V, Pin=20mW • ηT>40% @ Pout=7W (VGG control), VDD=12.5V, Pin=20mW • Broadband Frequency Range: 400-470MHz • Low-Power Control Current IGG=1mA (typ) at VGG=3.5V • Module Size: 30 x 10 x 5.4 mm • Linear operation is possible by setting the quiescent drain current with the gate voltage and controlling the output power with the input power
RoHS COMPLIANT • RA07H4047M-101 is a RoHS compliance products. • RoHS compliance is indicate by the letter “G” after the Lot Marking. • This product include the lead in the Glass of electronic parts and the lead in electronic Ceramic parts.How ever, it applicable to the following exceptions of RoHS Directions. 1.Lead in the Glass of a cathode-ray tube, electronic parts, and fluorescent tubes. 2.Lead in electronic Ceramic parts. |
