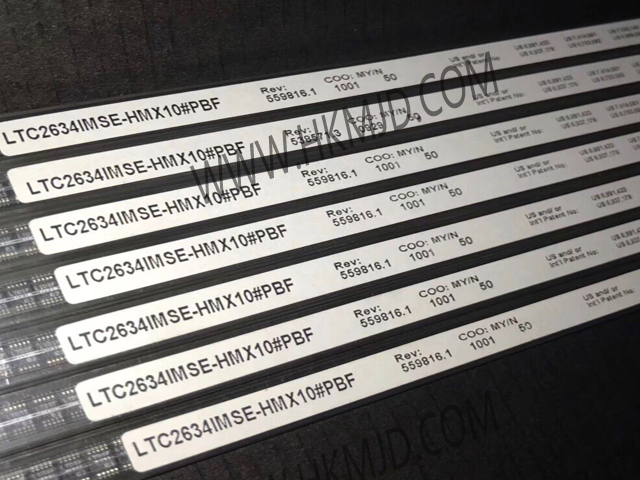

LTC2634 LTC2634IMSE-HMX10 Digital to Analog Converter

Details


Features

Integrated Precision Reference

2.5V Full-Scale 10ppm/°C (LTC2634-L)

4.096V Full-Scale 10ppm/°C (LTC2634-H)

Maximum INL Error: ±2.5 LSB (LTC2634-12)

Low Noise: 0.75mVP-P 0.1Hz to 200KHz

Guaranteed Monotonic over –40°C to 125°C Temperature Range

Selectable Internal or External Reference

2.7V to 5.5V Supply Range (LTC2634-L)

Ultralow Crosstalk Between DACs (2.4nV•s)

Low Power: 0.6mA at 3V

Power-On Reset to Zero-Scale/Mid-Scale

Double Buffered Data Latches

Tiny 16-Lead 3mm × 3mm QFN and 10-Lead MSOP Packages

The LTC®2634 is a family of quad 12-, 10- and 8-bit voltage output DACs with an integrated, high accuracy, low drift 10ppm/°C reference in 16-lead QFN and 10-lead MSOP packages.
