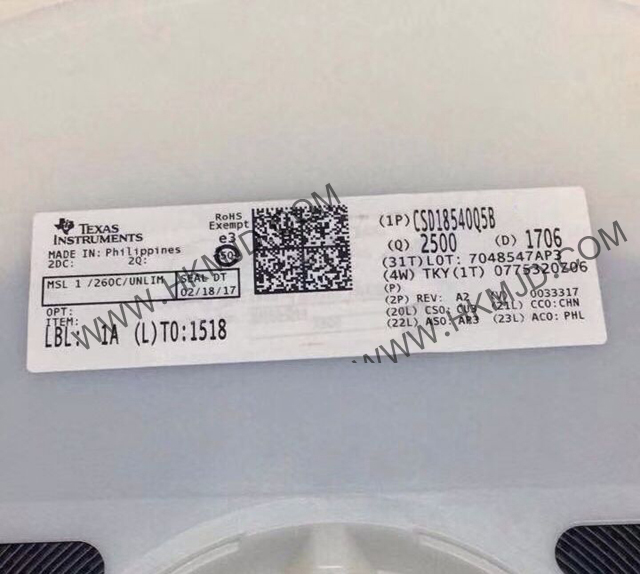

CSD18540Q5B N-Channel 60V Transistor

Details


Package / Case: VSON-Clip-8

Number of Channels: 1 Channel

Transistor Polarity: N-Channel

Vds - Drain-Source Breakdown Voltage: 60 V

Id - Continuous Drain Current: 100 A

Rds On - Drain-Source Resistance: 2.2 mOhms

Vgs th - Gate-Source Threshold Voltage: 1.5 V

Vgs - Gate-Source Voltage: 10 V

Qg - Gate Charge: 41 nC

Minimum Operating Temperature: - 55 C

Maximum Operating Temperature: + 150 C

Configuration: Single Triple Source Quad Drain

Pd - Power Dissipation: 188 W

Channel Mode: Enhancement

Tradename: NexFET

Packaging: Cut Tape

Packaging: MouseReel

Packaging: Reel

Height: 1 mm

Length: 6 mm

Series: CSD18540Q5B

Transistor Type: 1 N-Channel Power MOSFET

Width: 5 mm

Brand: Texas Instruments

Development Kit: BOOSTXL-DRV8305EVM, DRV8704EVM

Fall Time: 3 ns

Product Type: MOSFET

Rise Time: 9 ns

Factory Pack Quantity: 2500
