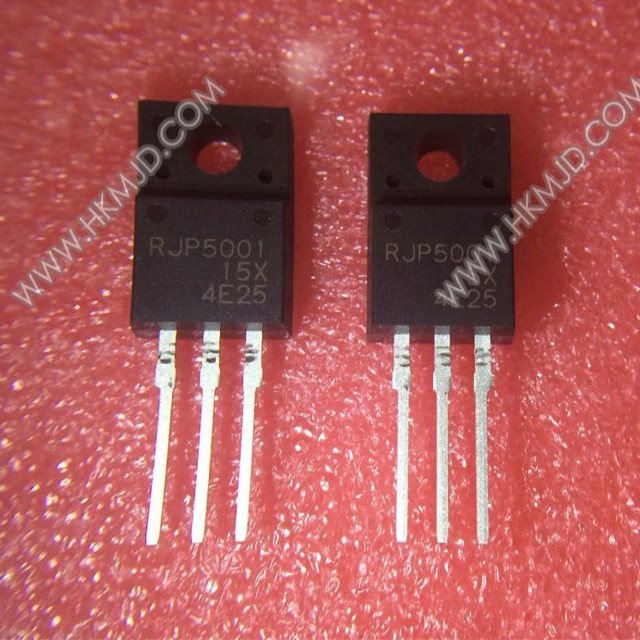

Transistor 500V TO-220 RJP5001 RJP5001APP



Manufacturer

Renesas

Manufacturer Part

RJP5001APP

Description

IGBT 500V 45W Through Hole TO-220FL

Application

Strobe flash

Datasheet

RJP5001APP



Details




Manufacturer     Renesas Electronics America

Packaging    Tube

Part Status  Active

Voltage - Collector Emitter Breakdown (Max)  500V

Current - Collector Pulsed (Icm)   300A

Vce(on) (Max) @ Vge, Ic     10V @ 12V, 300A

Power - Max      45W

Input Type  Standard

Td (on/off) @ 25°C  100ns/200ns

Test Condition   300V, 300A, 30 Ohm, 12V

Operating Temperature  -40°C ~ 150°C (TJ)

Mounting Type  Through Hole

Package / Case  TO-220-3 Full Pack

Supplier Device Package TO-220FL
