Manufacturer Part |
|
|
IC RF TXRX + MCU General ISM < 1GHz 164MHz ~ 190MHz, 410MHz ~ 475MHz, 820MHz ~ 950MHz 32-VFQFN Exposed Pad |
|
|
Low-Power, High-Performance, Wireless Systems With Data Rate Up to 1250 kbps ISM/SRD Bands: 169, 433, 868, 915, and 920 MHz Possible Support for Additional Frequency Bands: 137 to 158.3 MHz, 205 to 237.5 MHz, and 274 to 316.6 MHz Smart Metering (AMR/AMI) Home and Building Automation Wireless Alarm and Security Systems Industrial Monitoring and Control Wireless Healthcare Applications Wireless Sensor Networks and Active RFID IEEE 802.15.4g Applications Wireless M-Bus, All Modes |
|
|
Datasheet |
|
Details |
|

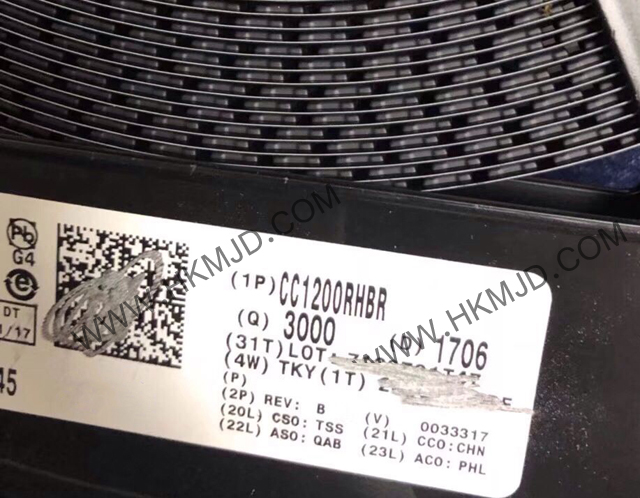

Manufacturer: Texas Instruments Product Category: RF Transceiver Type: Zigbee Frequency Range: 164 MHz to 190 MHz, 410 MHz to 475 MHz, 820 MHz to 950 MHz Maximum Data Rate: 1250 kb/s Modulation Format: 2-FSK, 2-GFSK, 4-FSK, 4-GFSK, MSK,OOK Supply Voltage - Min: 2 V Supply Voltage - Max: 3.6 V Supply Current Receiving: 23mA Supply Current Transmitting: 46mA Output Power: 6dBm Minimum Operating Temperature: - 40 C Maximum Operating Temperature: + 85 C Interface Type: SPI Package / Case: VQFN-32 Packaging: Cut Tape Packaging: Mouse Reel Packaging: Reel Sensitivity: - 123dBm Series: CC1200 Technology: Sub-1 GHz Brand: Texas Instruments Mounting Style: SMD/SMT Maximum Operating Frequency: 950 MHz Number of Receivers: 1 Number of Transmitters: 1 Product Type: RF Transceiver Factory Pack Quantity: 3000 Subcategory: Wireless & RF Integrated Circuits The CC1200 device is a fully integrated single-chip radio transceiver designed for high performance at very low-power and low-voltage operation in cost-effective wireless systems. |
