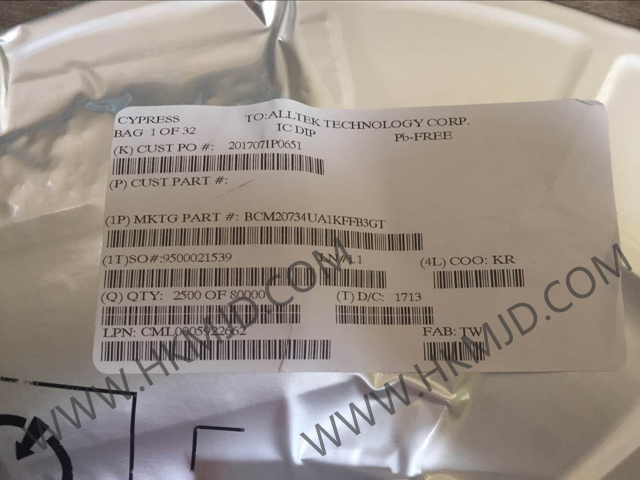

Cypress MCU Bluetooth v4.1 CYW20734 CYW20734UA1KFFB3G

Details


Complies with Bluetooth Core Specification version 4.1 including BR/EDR/BLE

BLE HID profile version 1.00 compliant

Bluetooth Device ID profile version 1.3 compliant

Supports Generic Access Profile (GAP)

Supports Adaptive Frequency Hopping (AFH)

Excellent receiver sensitivity

Programmable output power control

Integrated ARM Cortex-M3 microprocessor core

On-chip power-on reset (POR)

Support for EEPROM and serial flash interfaces

Integrated low dropout regulator (LDO)

On-chip software controlled power management unit

Programmable key scan matrix interface, up to 8 × 20 keys canning matrix

Three-axis quadrature signal decoder

PCM/I2S Interface

Infrared modulator

IR learning

Auxiliary ADC with up to 28 analog channels

One mono microphone input

On-chip support for serial peripheral interface (master and slave modes)

Broadcom Serial Communications interface (compatible with NXP I2C slaves)

Package type:

90-pin FBGA package (8.5 mm × 8.5 mm)

RoHS compliant

The Cypress CYW20734 is a Bluetooth 4.1-compliant, stand-alone baseband processor with an integrated 2.4 GHz transceiver.
