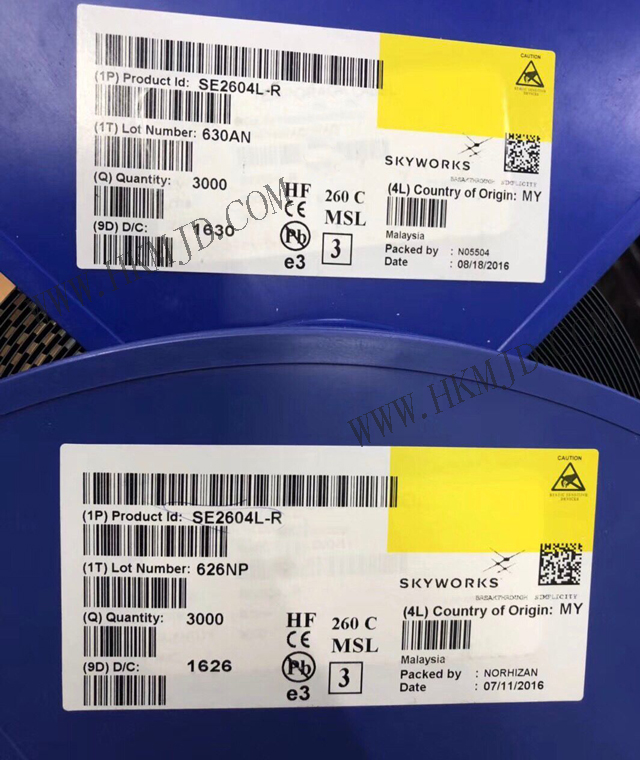

RF Amplifier SE2604L SE2604L-R SE2604 WLAN power amplifier module



Manufacturer

Skyworks Solutions, Inc.

Manufacturer Part

SE2604L-R

Description

RF Amplifier 2.4GHz 802.11bgn 3.3Volt -40C +85C

Application

IEEE802.11b DSSS WLAN

IEEE802.11g,n OFDM WLAN

High Power Wireless Networking Products

Datasheet

SE2604L



Details




Mounting Style: SMD/SMT

Package / Case: QFN-16

Type: Wireless LAN Power Amplifier

Operating Frequency: 2.4 GHz to 2.5 GHz

P1dB - Compression Point: 30dBm

Gain: 32 dB

Operating Supply Voltage: 3.3 V

Test Frequency: 2.45 GHz

Operating Supply Current: 410mA

Minimum Operating Temperature: - 40 C

Maximum Operating Temperature: + 85 C

Packaging: Cut Tape

Packaging: Mouse Reel

Packaging: Reel

Brand: Skyworks Solutions, Inc.

Product Type: RF Amplifier

Factory Pack Quantity: 3000

Subcategory: Wireless & RF Integrated Circuits

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 2.9 V



The SE2604L is a high power 802.11bgn WLAN power amplifier module providing the functionality of the power amplifier, power detector, reference voltage generator and input match.
