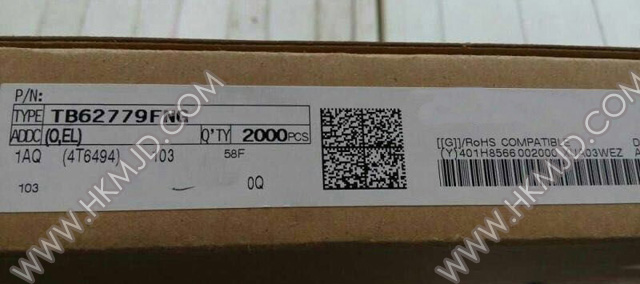

TOSHIBA《TB62779FNG TB62779》LED Lighting Drivers

Manufacturer

TOSHIBA

Manufacturer Part

TB62779FNG

Description

LED Lighting Drivers

Application

The TB62779FNG/FG is comprised of

constant-current drivers designed for

LEDs and LED panel displays

Datasheet

TB62779

Details


Manufacturer:Toshiba

Product Category:LED Lighting Drivers

Series:TB62779

Brand:Toshiba

Product Type:LED Lighting Drivers

Power supply voltages: VDD = 3.3 V/5 V

 Output drive capability and output count: 50 mA × 8 channels

 Constant-current output range: 5 to 40 mA

 Voltage applied to constant-current output terminals: 0.4 V

(min, IOUT = 5 to 40 mA)

 Designed for common-anode LEDs

 Thermal shutdown (TSD)（min: 150℃）

 Power on reset (POR)

 Logical input signal voltage level: 3.3-V and 5-V CMOS

interfaces (Schmitt trigger input)

 Maximum output voltage: 25V

 Serial data transfer rate: 25 MHz (max) @cascade connection

 Operating temperature range: Topr = −40 to 85°C

 Package: SSOP16-P-225-0.65B/ SSOP16-P-225-1.00A

 Constant-current accuracy

PN：TB62779FNG
