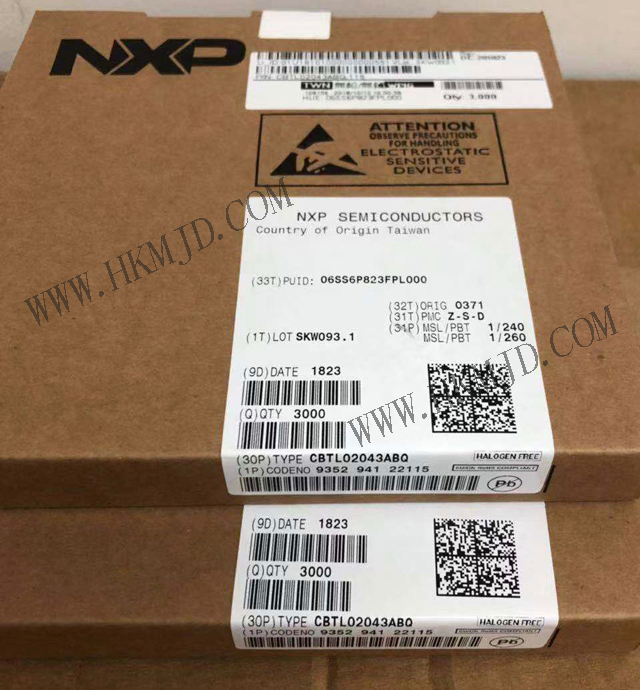

NXP《CBTL02043ABQ》Multiplexer Switch ICs

Manufacturer

NXP Semiconductors

Manufacturer Part

CBTL02043ABQ

Description

Multiplexer Switch ICs 3.3V 2 DIFF CH 2:1 MULTI/DEMUX SW

Application

Routing of high-speed differential signals with low signal attenuation

PCIe Gen3

DisplayPort 1.2

USB 3.1

SATA 6 Gbit/s

Datasheet

CBTL02043

Details


Product Category:Multiplexer Switch ICs

RoHS: Details

Product:Multiplexers/Demultiplexers

Number of Channels:4 Channel

Configuration:2 x 2:1

On Resistance - Max:6 Ohms

Operating Supply Voltage:3 V to 3.6 V

Minimum Operating Temperature:- 40 C

Maximum Operating Temperature:+ 85 C

Mounting Style:SMD/SMT

Package / Case:DHVQFN-20

Packaging:Cut Tape

Packaging:MouseReel

Packaging:Reel

Bandwidth:7 GHz

Brand:NXP Semiconductors

Off Isolation - Typ:- 20 dB

Product Type:Multiplexer Switch ICs

Propagation Delay Time:60 ps

Factory Pack Quantity:3000

Subcategory:Switch ICs

Part # Aliases:935294122115

Unit Weight:0.001076 oz

PN：CBTL02043ABQ
